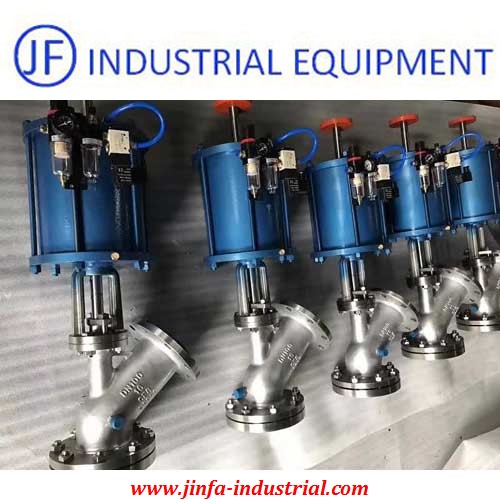

DN25-250 Pneumatic Insulation Discharge Valve

DN25-250 Pneumatic Insulation Discharge Valve

Introduction:

The pneumatic insulation discharge valve uses media such as water, acetone, alcohol, ammonia, barium carbonate, benzene (WCB material has a minimum temperature of -290C and a maximum temperature of 425C. The pneumatic insulation discharge valve uses media such as particles, oil, pulp, Carbon dioxide gas (The lowest operating temperature of stainless steel is -1000C, and the highest operating temperature is 2320C.)

It is strictly forbidden to use fluorine-containing ionic liquid (such as HF, etc.) or strong alkali and phosphoric acid (temperature>1500C, concentration>30%) for the pneumatic insulation discharge valve.

Manufacturing standards:

China GB, JB of the Ministry of Machinery, chemical standards HG, American standard API, ANSI, German standard DIN, Japanese JIS, JPI, British standard BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature Steel, titanium alloy steel, etc. Working pressure is 1.0Mpa-50.0Mpa. Working temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, ferrule, clamp. Drive mode: manual, pneumatic, hydraulic, electric.

Main Specs and Dimensions:

The general working temperature of stainless steel: ≤1500C

Pressure range of pneumatic insulation discharge valve: 0.6~2.5MPa

The diameter range of pneumatic insulation discharge valve: 25~250mm
