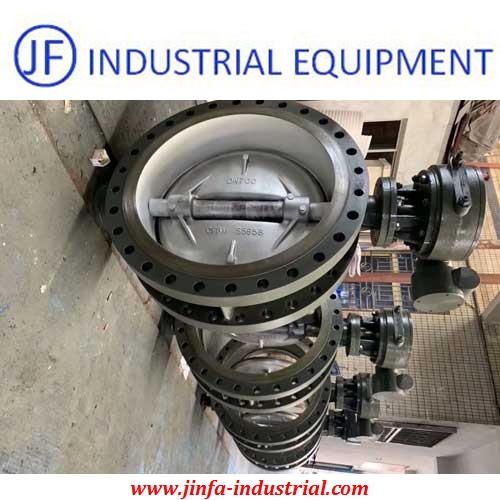

DN700 WCB Material Electric Flange Butterfly Valve

DN700 WCB Material Electric Flange Butterfly Valve

Introduction:

D941X electric soft-sealed flange butterfly valve is a new generation of speed-adjusting butterfly valve. This valve has changed the traditional mechanical speed change mode to complete the speed change of the butterfly plate. According to the action characteristics of the different positions of the butterfly plate, it is driven from electric A brand-new design was carried out on the control. The electric soft-sealed flange butterfly valve adopts the frequency of changing the input current of the electric device, and then adjusts the rotation speed and output torque of the electric device to achieve the control speed of the butterfly plate opening and closing, and realize the butterfly plate fast closing and slow closing two-stage closing or slow opening. Quickly open the two-stage opening purpose. It has the same function as the hydraulic control butterfly valve.

Features:

Electric soft sealing butterfly valve Model: D941X

Electric soft sealing butterfly valve Nominal diameter: 50MM-1800MM

Electric soft sealing butterfly valve Working pressure: 1.0MPA -1.6MPA

Electric soft sealing butterfly valve Connection mode: flange connection

Electric soft sealing butterfly valve Form: Worm gear

Electric soft-sealed butterfly valve Main function: as a switch

Electric soft sealing butterfly valve Use medium: water, oil, steam

Electric soft sealing butterfly valve Material: cast iron, cast steel

Electric soft sealing butterfly valve Standard: Ministry of Machinery standard or customized non-standard

Main Dimension:
