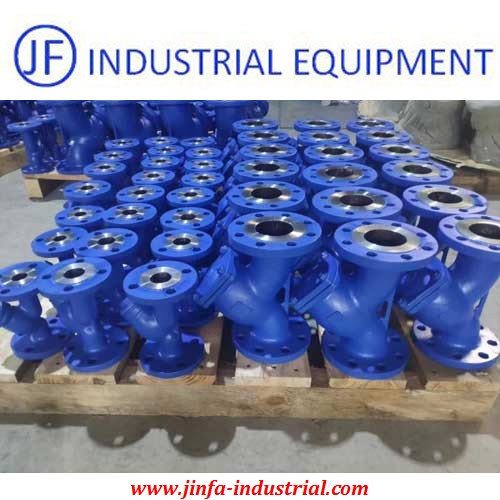

Industrial Valve Use Y Type Flange Filter

The Y-type filter is a necessary filter equipment for the use of hydraulic control valves and precise
and easy-to-clog mechanical products. It is an indispensable device in the pipeline series that conveys the medium.
It is usually installed at the inlet of hydraulic control valves, pressure relief valves, pressure relief valves, fixed water level valves
and other equipment to eliminate impurities in the medium and
prevent particulate impurities from entering Channels cause wall plugs
to protect the fittings on the equipment pipes from wear and blockage.
EMAIL INQUIRY

Industrial Valve Use Y Type Flange Filter

Introduction:

Y-type filter is an indispensable device used in water, oil, gas pipelines and various equipment. It mainly removes the medium in the pipe to protect the pressure reducing valve, pressure relief valve, fixed water level valve, water pump and other equipment. Achieve normal operation. Please install it at the entrance when installing, generally use 10-30 mesh/cm2 for water filter, 40-100 mesh/cm2 for air filter, and 60-200 mesh/cm2 for oil filter.

Manufacturing standards:

China GB, JB of the Ministry of Machinery, chemical standards HG, American standard API, ANSI, German standard DIN, Japanese JIS, JPI, British standard BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature Steel, titanium alloy steel, etc. Working pressure is 1.0Mpa-50.0Mpa. Working temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, ferrule, clamp. Drive mode: manual, pneumatic, hydraulic, electric.

Features:

The Y-type filter adopts a stainless steel double-layer mesh structure, which is sturdy and durable. It has the characteristics of advanced structure, low flow resistance, and convenient sewage discharge. It can be used for water, steam, oil, nitric acid, urea, oxidizing media and other media. The mesh number of the filter screen should be set according to the user's needs. Generally, the water-passing mesh is 18-30 mesh, the air-passing mesh is 40-100 mesh, and the oil-passing mesh is 100-480 mesh. The Y-type filter can also be combined with the telescopic section to form a Y-type pull rod telescopic filter with adjustable installation length. Filter screen can be made according to user requirements

Main Specs and Dimensions:

Shell material: carbon steel WCB, brass B62, stainless steel 304, 316, 316L

Filter frame filter material stainless steel 304, 316, 316L

Seal material: oil-resistant asbestos, nitrile rubber, polytetrafluoroethylene

Explosion-proof level BS5501: IIA, IIB, IIC

Ambient temperature (℃) -30~380 -80~450

Nominal pressure (MPa) 0.6~5.0 (150Lb~600Lb)

Filtration accuracy (mesh/in) 10~300

DN (mm)	L	D	D1	D2	B	f	n-φ
15	140	95	65	45	14	2	4-φ14
20	150	105	75	55	14	2	4-φ14
25	160	115	85	65	14	2	4-φ14
32	180	135	100	78	16	3	4-φ18
40	200	145	110	85	16	3	4-φ18
50	220	160	125	100	16	3	4-φ18
65	260	180	145	120	18	3	4-φ18
80	310	195	160	135	20	3	8-φ18
100	350	215	180	155	20	3	8-φ18
125	400	245	210	185	22	3	8-φ18
150	450	280	240	210	24	3	8-φ23
200	500	335	295	265	26	3	12-φ23
250	550	405	355	320	30	3	12-φ25
300	580	460	410	375	30	4	12-φ25
350	760	520	470	435	34	4	16-φ25
400	800	580	525	485	36	4	16-φ30
450	900	640	585	535	44	4	20-φ30
