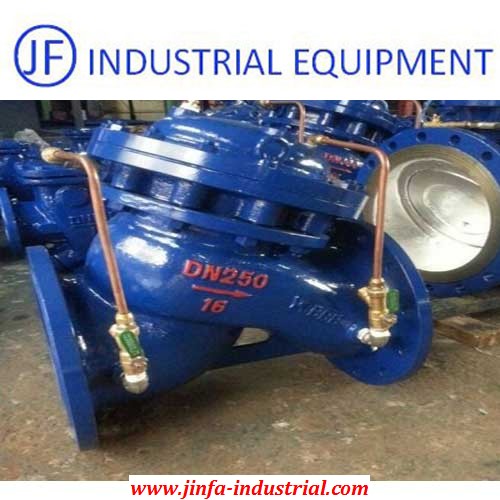

DN250 PN16 Water Pump Control Valve

DN250 PN16 Water Pump Control Valve

Introduction:

The multifunctional water pump control valve is used to install on the pump outlet pipe of the water supply system of high-rise buildings and other water supply systems. Prevent the medium from flowing back and prevent the occurrence of water hammer and water hammer. -The valve has three functions: electric valve, check valve and water hammer eliminator. Can effectively improve the safety and reliability of the water supply system.

Features:

1. The effect of preventing water hammer is good. It integrates the technology of eliminating water hammer such as slow opening, non-return quick closing, slow closing, etc., to prevent the damage to the water supply pipeline and the water pump due to the failure of starting the pump, the backflow of the pump and the water hammer.

2. Easy to operate, no need to add a power distribution control system for the valve, the valve will automatically complete the control function in sequence with the opening and stopping of the water pump. Appropriate control parameters can be obtained by setting the opening of the regulating valve.

3. The valve body adopts a full-channel, direct-flow and streamlined design. The hydraulic loss is small and the energy saving effect is good.

Main Specs and Dimensions:

Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa

Minimum operating pressure: ≥O.04MPa

Slow closing time: 3～60s (adjustable)

Applicable medium: water Medium temperature: O～80"C
