STP Black Water Treatment Plant Marine MBR Sewage Treatment System

STP Black Water Treatment Plant Marine MBR Sewage Treatment System

Introduction:

Main Parameters of MBR Sewage Treatment Plant

(1)Usage:for treating sewage on board ,shipyard or dock

(2)“MBR” technology, have impact structure to match limited space of cabin

(3)International standard:IMO resolution MEPC227(64)

(4) Discharge standard:TSS≤35mg/L,BOD5≤25mg/L,COD≤125mg/L,Coliform≤ 100pc/100ml,PH: 6~8.5

(5)Electricity:AC380v/50HZ/3Φ AC440V/60HZ/3Φ (the electricity can be changed according to your requirement )

(6)Capacity:from 15~440 persons

(7)Certificate:EC,CCS,BV,LR MBR Sewage Treatment Plant

Features:

The different effluent standards

Discharge standard Convention	IMO Old standard	IMO New standard	USCG	Alaska
TSS (mg/l)	50	35	150	30
BOD5 (mg/l)	50	25	NR	30
COD (mg/l)	NR	125	NR	NR
Coliform (per 100ml)	250	100	200	20
PH	6~9	6~8.5	NR	6~9
Residual chlorine (mg/l)	NR	<0.5	NR	10
Type approval Test days	10	10	10	30

Product Range:

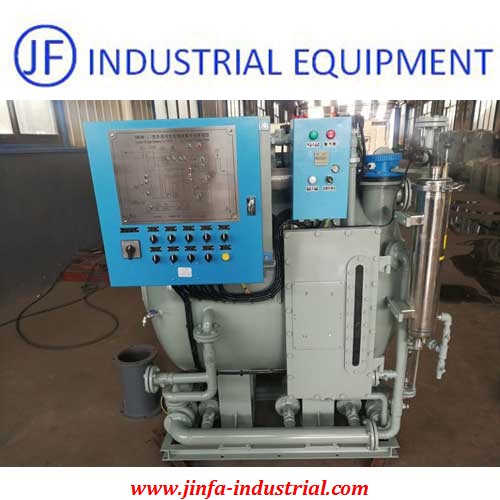

Product Pictures:

SWCM 污水处理装置.jpg


SWCM SWCBM 污水处理装置.jpg

SWCM SWCBM污水处理装置.jpg



Note: The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!
