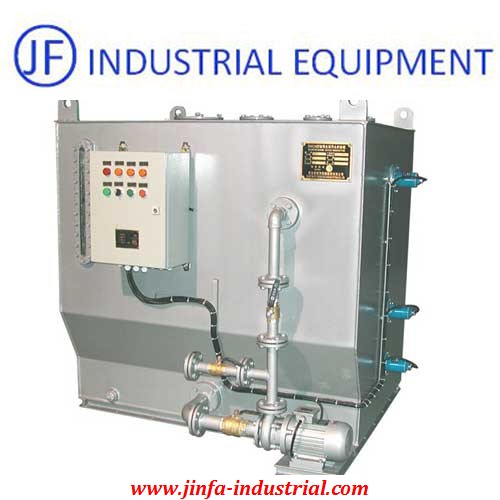

WCB Series Waste Water Filter Marine Sewage Treatment Plant

Marine sewage treatment plant belongs to the key devices
for prevention of prollution form ships in seas and oceans
according to the revised Annex IV of the International
Convention of the Prevention of Pollution(MARPOL 73/78).
This device is applicable to treat the sewage, which means
human body wastes and the wastes from the toilets on
vessels and which is also called "black water".
EMAIL INQUIRY

WCB Series Waste Water Filter Marine Sewage Treatment Plant

Introduction:

The method of combining catalytic oxidation, ultraviolet disinfestations and sterilization is adopted in the WCBx-B Series Sewage Treatment Plant; it treats the domestic sawage of toilet from ship.

Since the biomembrance is set in the aeration chamber, the chlorine adding sterilization is adopted, so compare with the products of the same kind, it has the characteristics of small cubage,

light weight, compact structure and without secondary pollution. The discharged water after the treatment of the device has reached the effuent standard stipulated internationally,

and it accords with the requirement of resolution MEPC.159(55) of International Marine Organization Environmental Protcetion Commission, and International Waste Fluid Effluent Standard.

Features:

WCBx-B Series Sewage Treatment Plant consists of 5 watertight tanks.

These 5 tank respectively are a sewage tank, first-stage contact oxidation tank, second-stage contact oxidation tank, a settlement tank and a catchment tank.

Product Range:

Marine Sewage Water Treatment Plant
Marine Oil-water seperator
Marine Pressure Water Tank

Product Pictures:

SWCM 污水处理装置.jpg


SWCM SWCBM 污水处理装置.jpg

SWCM SWCBM污水处理装置.jpg



Specification:

Model\Name		WCB- WCB- WCB- 10 20 30	WCB- WCB- WCB- WCB- WCB- 40 50 60 80 100	WCB- WCB- WCB- WCB- 200 300 400 500
Suitable number of people		10 20 30	40 50 60 80 100	200 300 400 500
Max number o people		12 22 33	45 55 65 85 110	220 330 450 550
Treatment load(t/d)		0.7 1.4 2.1	2.8 3.5 4.2 5.6 7.0	14 21 28 35
crushing pump	Model		1CWF-11	2CWF-11
	Capcity(m3/h)		10	20
	Motor power		1.5kw	2.2kw
Air pump	Model	CYBW-10	CYBW-20	CYBW-40
	Tpye	Sliding vane type
	Capacity(m3/h)	10	20	40
	Pressure(Kpa)	60	60	60
	Motor power	0.37	0.75	1.1
Discharging pump	Model	0.5CWF-10	25CGW-10-15	32CGW-15-20
	Capacity(m3/h)	5	10	15
	Pressure(Kpa)	0.1	0.15	0.2
	Motor power	1.1	1.1	1.5
Sterilizer		XDJDV24 MD(P)-10R(AC220V)
Power supply		AC3ph380V/50Hz or 3ph440V/60Hz
Control mode		Automatic/Manual
Medicine consumption		0.02 0.03 0.04	0.05 0.06 0.07 0.09 0.11	0.15 0.30 0.40 0.50
