Marine Discharge Pump Grey Black Water Sewage Treatment Plant

Marine Discharge Pump Grey Black Water Sewage Treatment Plant

Introduction:

Marine Sewage treatment plant -discharge pump

WCMBR Series Sewage Treatment consists of 5 watertight tanks.These 5 tanks respectively are a sewage tank,

first-stage contact oxidatin tank,second-stage contact oxidation tank,a settlement tank a catchment tank.

This device has strong corrosion resistance and applies to sea water to flush toilets.

Features:

The different effluent standards

Discharge standard Convention	IMO Old standard	IMO New standard	USCG	Alaska
TSS (mg/l)	50	35	150	30
BOD5 (mg/l)	50	25	NR	30
COD (mg/l)	NR	125	NR	NR
Coliform (per 100ml)	250	100	200	20
PH	6~9	6~8.5	NR	6~9
Residual chlorine (mg/l)	NR	<0.5	NR	10
Type approval Test days	10	10	10	30

Product Range:

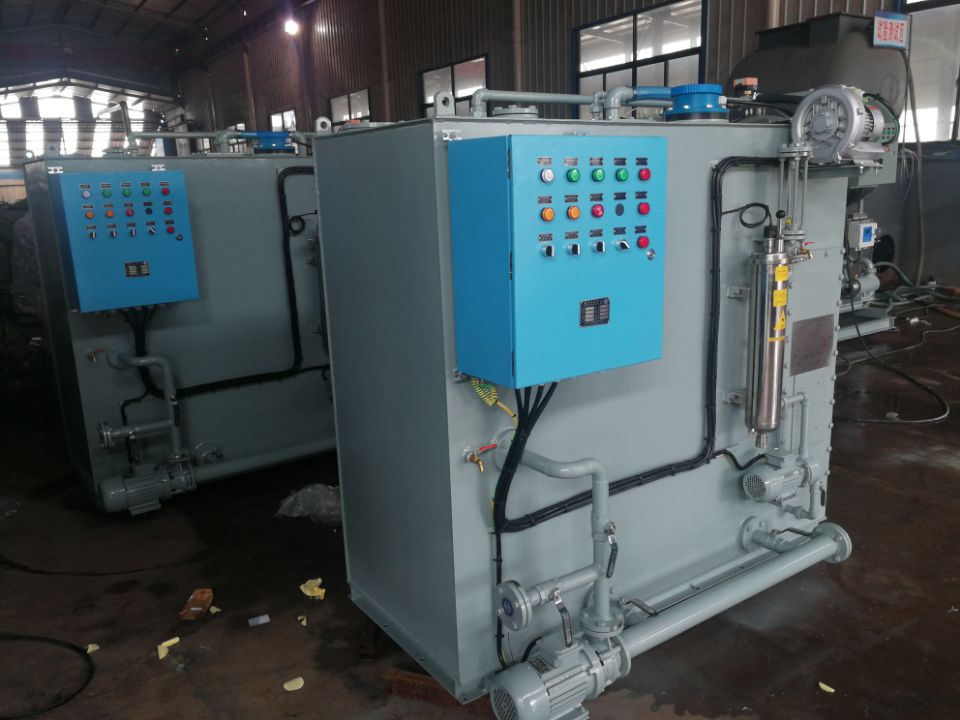

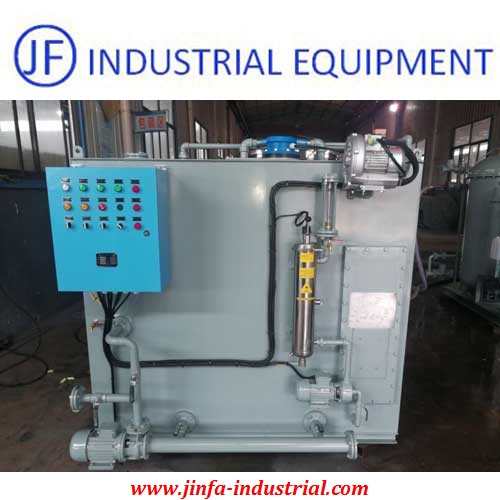

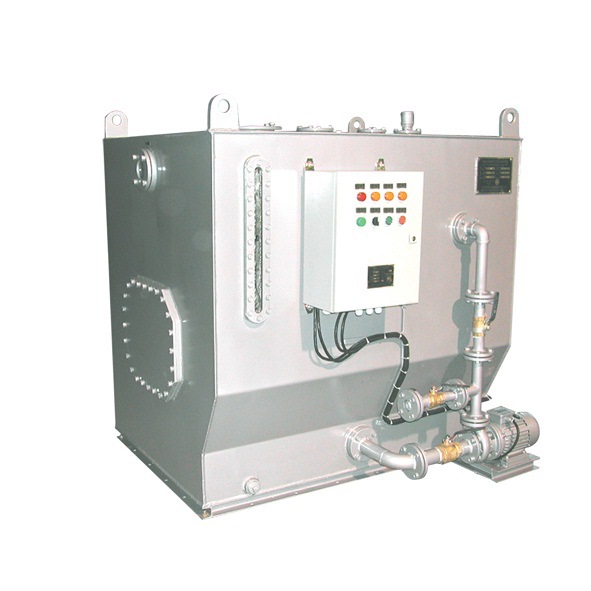

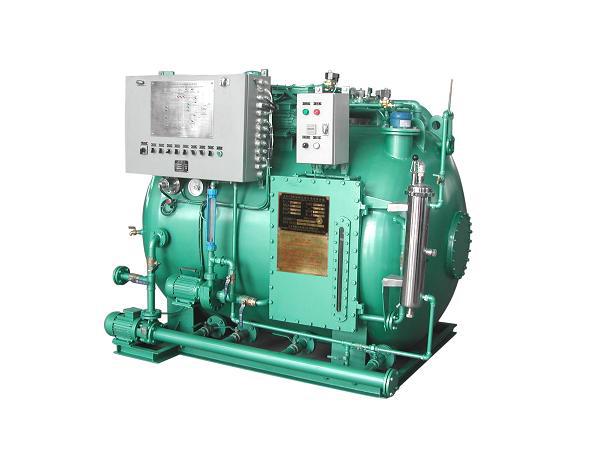

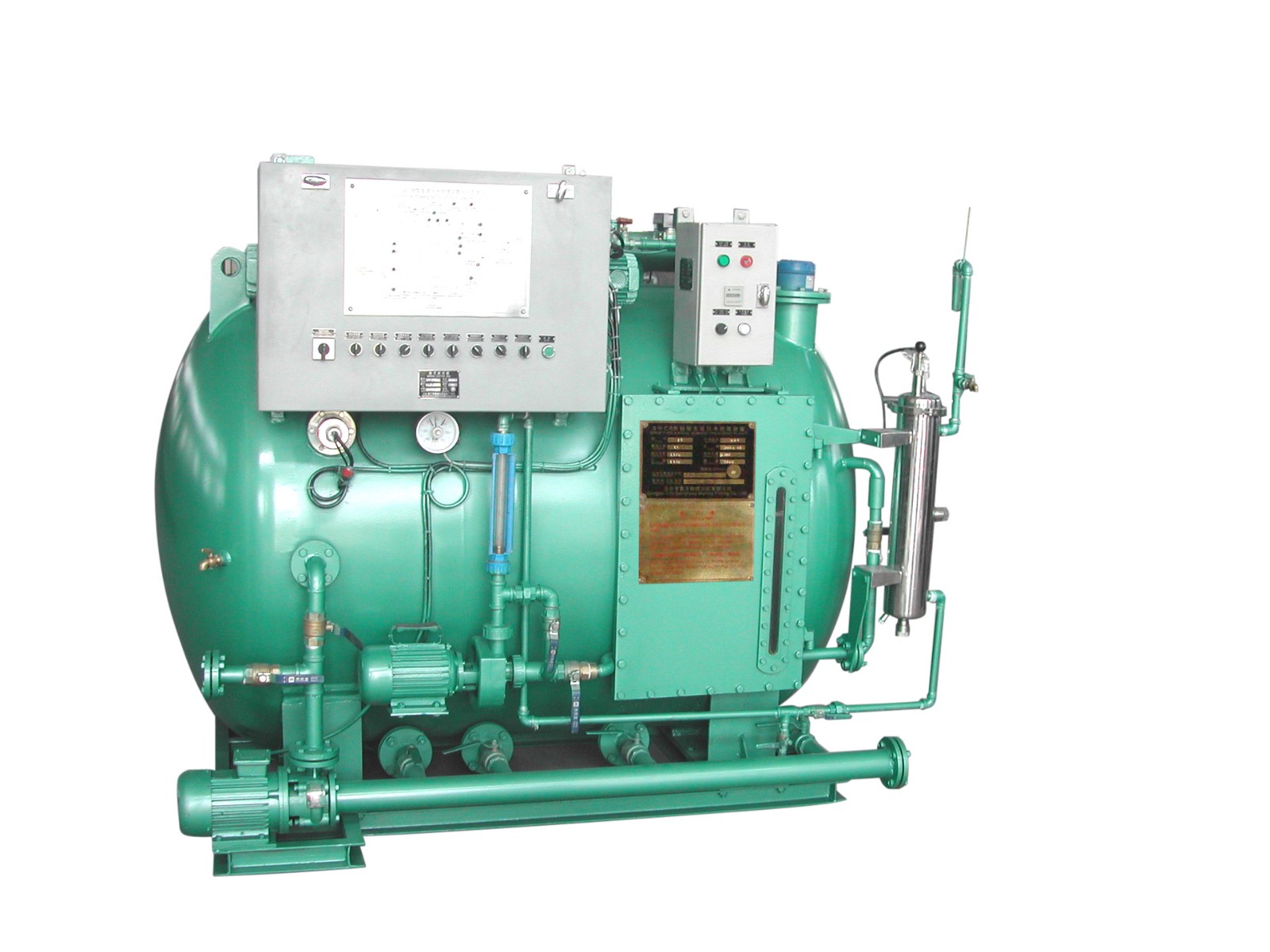

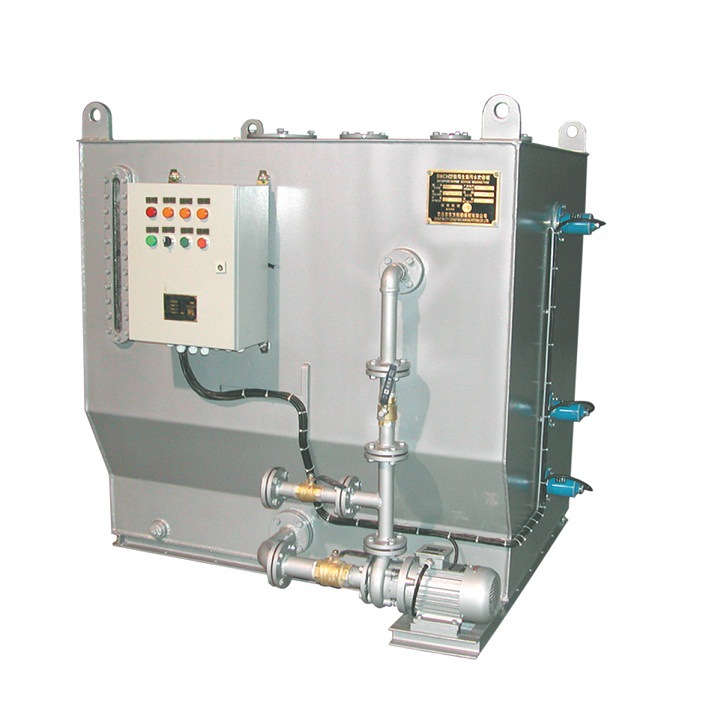

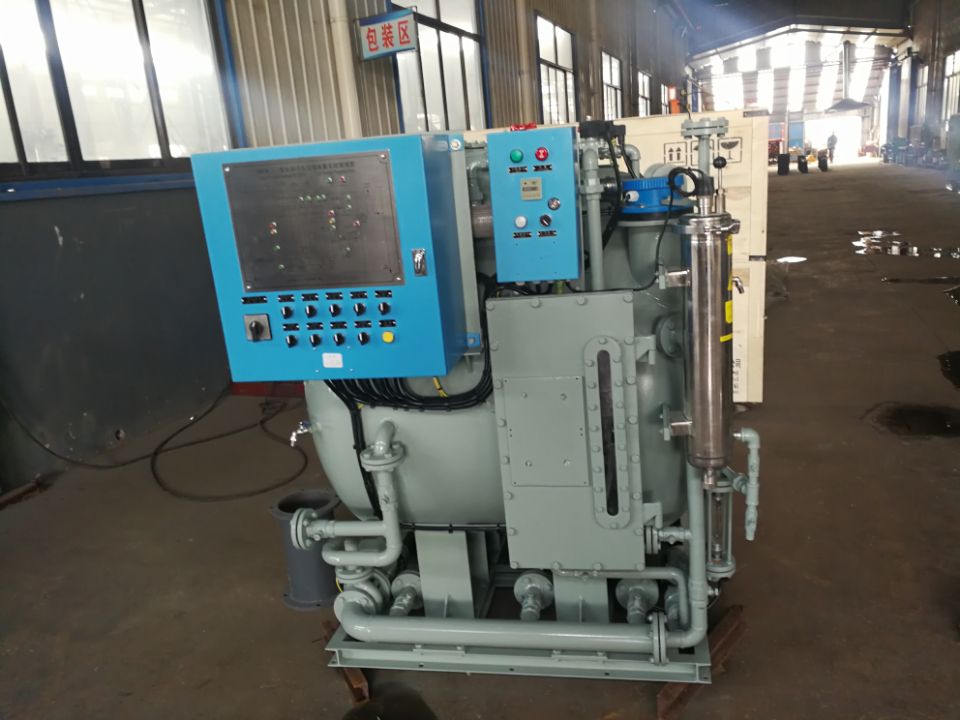

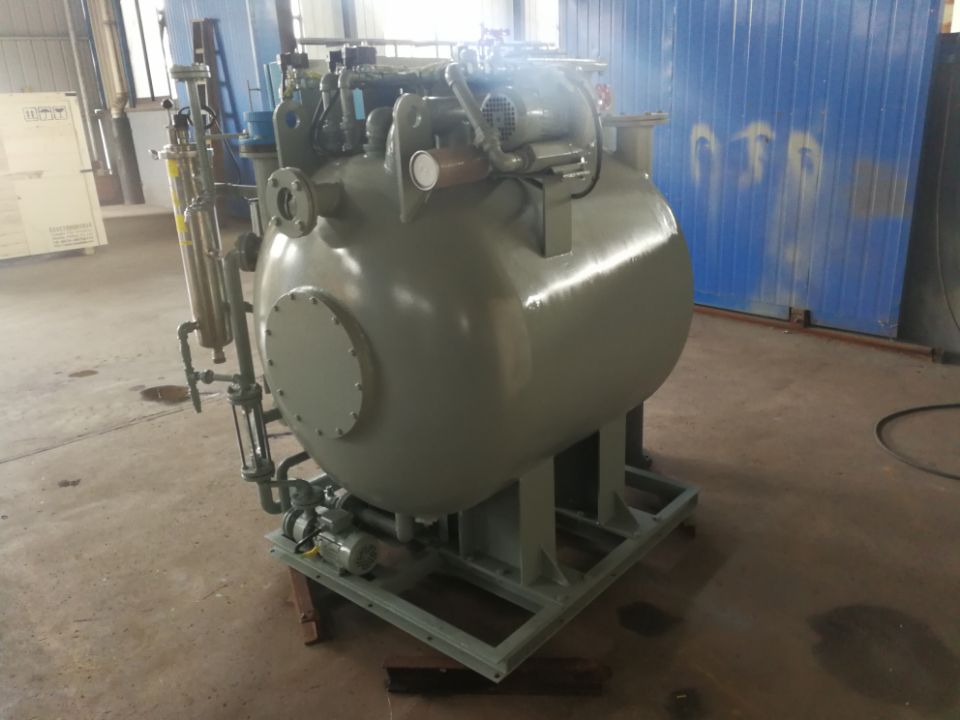

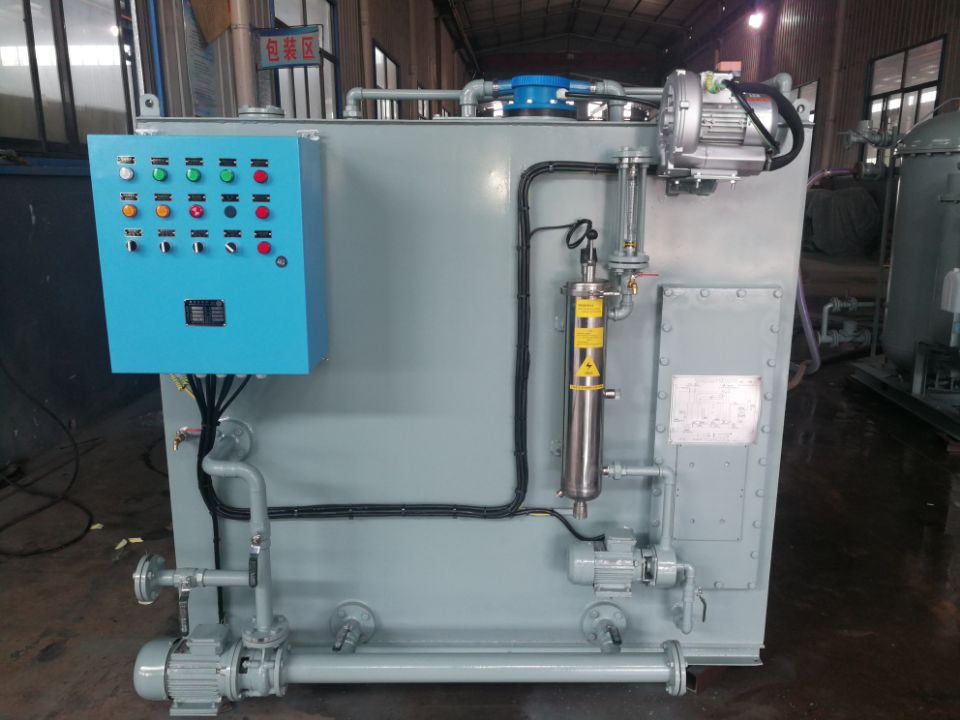

Product Pictures:

SWCM 污水处理装置.jpg


SWCM SWCBM 污水处理装置.jpg

SWCM SWCBM污水处理装置.jpg



Specification:

Parameter\Type	WCMBR WCMBR WCMBR -10 -20 -30	WCMBR-40	WCMBR-50	WCMBR-60	WCMBR-70	WCMBR-80	WCMBR-300	WCMBR-400
Suitable of number of people	10 20 30	40	50	60	70	80	300	400
Treatment load (t/d)	0.77 1.54 2.31	3.08	3.85	4.62	5.39	6.16	23.1	30.8
Origanic load (kg/d)	0.39 0.77 1.16	1.54	1.93	2.31	2.7	3.08	11.55	15.4
Drain standard	BOD5<25mg/L;COD<125mg/L;TSS<35mg/L;Coli group<100 pcs/100mL
Model	25CGW-5-15	32CGW-10-20		32CGW-15-30		32CGW-10-20
Type	Veryical type(Discharge pump)
Folw(m3/h)	5	10		10		10
Power(KW)	1.1	1.5		1.5		1.5
Model	CYBW-10	CYBW-20			CYBW-40		CYBW-40
Type	Sliding vane type(air pump)
Flow(m3/h)	10	20			40		40
Pressure(kPa)	60
Power	0.37	0.75			1.5		1.5
