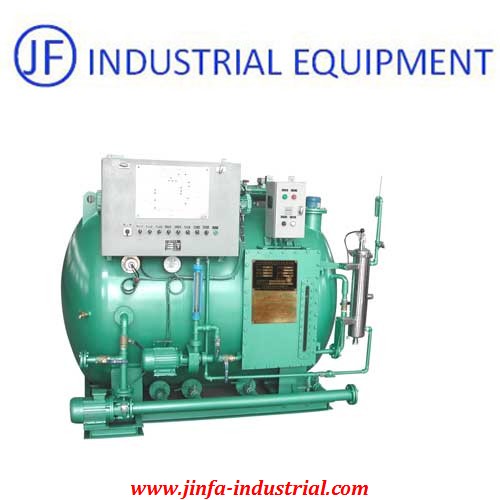

CCS Certificate SWCM 10-250 Persons Marine Sewage Treatment Plant

Marine sewage treatment plant belongs to the key devices
for prevention of prollution form ships in seas and oceans
according to the revised Annex IV of the International
Convention of the Prevention of Pollution(MARPOL 73/78).
This device is applicable to treat the sewage, which means
human body wastes and the wastes from the toilets on
vessels and which is also called "black water".
EMAIL INQUIRY

CCS Certificate SWCM 10-250 Persons Marine Sewage Treatment Plant

Introduction:

Marine sewage treatment plant belongs to the key devices for prevention of prollution form ships in seas

and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution(MARPOL 73/78).

This device is applicable to treat the sewage,which means human body wastes and the wastes from the toilets on vessels and which is also called "black water".

The device also can be used in terrestrial sewage,besides in ship vessels and oil platform.

The water quality after treatment can reach the national reuse water quality requirements.

It's also applicable to treat the galley,shower drainage which is called"gray water" on condition

that the "gray water" is pretreated and these should select a bigger capacity model to match with.

Features:

CCS,BV,EC ,LR ,GL Approval Waste Water Treatment Plant

IMO Approval
Meet resolution of MEPC .227(64)
Used for seaport,dock,industry,petroleum ,various vessels

Product Range:

Marine Sewage Water Treatment Plant
Marine Oil-water seperator
Marine Pressure Water Tank

Product Pictures:

SWCM 污水处理装置.jpg


SWCM SWCBM 污水处理装置.jpg

SWCM SWCBM污水处理装置.jpg



Specification:

Model		SWCM (I)
Model		15	20	25	30	40	50	60	80	100	120
LOAD	Average load (L/d)	1190	1540	1890	2310	3080	3780	4480	6020	7700	9100
	Peak load (L/h)	149	193	237	289	385	473	560	753	963	1138
	Organic load (kgBOD5/d)	0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	4.55
Rated capacity (men)		15	20	25	30	40	50	60	80	100	120
Max capacity(men)		17	22	27	33	44	54	64	86	110	130
Electricity		AC 380V,50Hz,3φ/ AC 415V,50Hz,3φ/AC 440,60Hz,3φ/AC 480V,60HZ,3φ
Power (kW)		2.5	2.5	2.5	2.5	3.0	3.0	3.5	4.0	4.0	4.0
Outline dimension (mm) L×W×H		1850 × 1200 × 1450	1680 × 1400 × 1570	1890 × 1400 × 1560	1980 × 1500 × 1650	2320 × 1600 × 1700	2320 × 1700 × 1880	2650 × 1700 × 1860	2800 × 1900 × 2090	2800 × 2100 × 2300	3030 × 2100 × 2300
weight	Dry weight(kg)	1000	1000	1100	1200	1300	1450	1600	1850	2200	2300
weight	Wet weight(kg)	2283	2640	2740	3500	4400	5073	5270	6517	8268	9166
Effluent standard		BOD5<25 Qi/Qe mg/L COD<125 Qi/Qe mg/L ,TSS<35 Qi/Qe mg/L, coliform<100/100ml, PH6~8.5, CL2<0.5mg/L
