LC-25 Oval Gear Fuel Oil Flow Meter
Introduction:
Fuel flow meter: one of the volumetric flow meters, especially suitable for the flow measurement of heavy oil, polyvinyl alcohol,
resin and other media with high viscosity, so the oval gear flow meter is generally also known as the oil meter.
Elliptical gear flowmeter is a purely mechanical flowmeter, which is completely intrinsically safe and suitable for various hazardous situations.
It has the functions of local display and pulse transmitter remote transmission output. The optional elliptical gear flowmeter with stainless steel
as its main material has strong corrosion resistance and is suitable for chemical and food hygiene industries.
Elliptical gear flowmeter is easy to install and maintain, with accuracy of 0.3 and 0.5.
Specification:

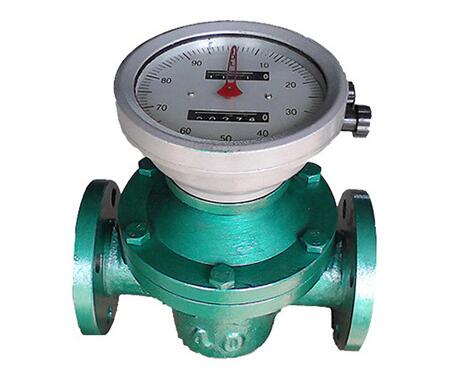

1. Ordinary fuel flow meter: shell material: cast iron shell, elliptical gear material: aluminum magnesium alloy
Measurement Accuracy | 0.3-0.5 | |||
Working Pressure | 1.6Mpa | |||
Working Temperature | -10-+80ºC | |||
Model | m3/h | |||
DN | Mpa.s | |||
mm | 0.6-2 | 2-8 | 8-200 | |
LC-10 | 10 | 0.05-0.25 | 0.04-0.25 | 0.025-0.25 |
LC-15 | 15 | 0.5-1.5 | 0.3-1.5 | 0.15-1.5 |
LC-20 | 20 | 0.75-3 | 0.4-3 | 0.3-3 |
LC-25 | 25 | 1.5-6 | 0.8-6 | 0.6-6 |
LC-40 | 40 | 3-15 | 2-15 | 1.5-15 |
LC-50 | 50 | 4.8-24 | 3-24 | 2.4-24 |
LC-80 | 80 | 12-60 | 8-60 | 6-60 |
LC-100 | 100 | 20-100 | 13-100 | 10-100 |
LC-150 | 150 | 38-190 | 24-190 | 19-190 |

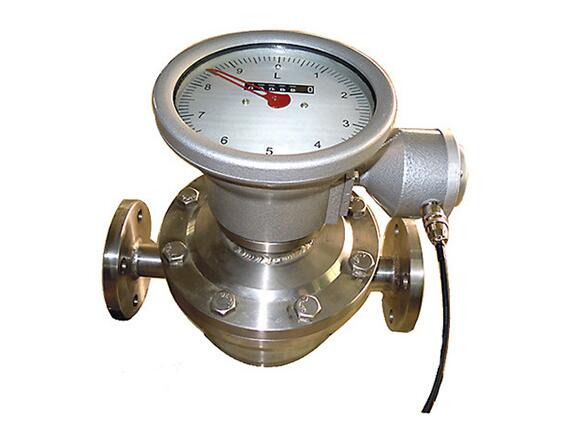

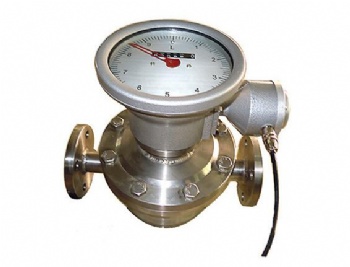

2. Stainless steel fuel flow meter: the main body is made of stainless steel,
which has strong corrosion resistance and is suitable for chemical and food hygiene industries
Measurement Accuracy | 0.5 | |||
Working Pressure Mpa | 1.6 2.5 | |||
Working Temperature | -20-+80ºC | |||
Model | m3/h | |||
DN | Mpa.s | |||
mm | 0.6-2 | 2-8 | 8-200 | |
LC-25B | 25 | 2-6 | 1.26-8 | 1-6 |
LC-40B | 40 | 5-15 | 3-15 | 2.5-15 |
LC-50B | 50 | 8-24 | 4.8-24 | 4-24 |
LC-80B | 80 | 15-40 | 8-40 | 6.5-40 |
3. Returnable zero fuel flow meter
The flowmeter is based on the ordinary oval gear flowmeter and adopts a return-to-zero counter.
The counter is equipped with two groups of word wheels, namely, return to zero and accumulation,
and has the dual functions of batch counting and total accumulation.
