DRG Series 0.4Mpa Electric Heating Marine Pressure Water Tank
Introduction:
Electric Heating Hot Water Storage Tank is suitable for heating water on the ship or platform, heated fresh water for crew use.
The Hot Water Storage Tank for Ship/Marine Heating Systems can be combined to use with fresh water pressure tank on board,
namely use fresh water to renew the stock of hot water tank, and then heated by electric for usage of entire vessel.
Product Standard List:
1.Pressure Gauge
2.Thermometer
3.main body
4.Temperature Controller
5.Safty Valve
6.Electric Control Box
7.Liquid Level Relay
8.Electric Heater
9.Discharge Calve
Product Range:
Marine Sewage Water Treatment Plant
Marine Oil-water seperator
Marine Pressure Water Tank

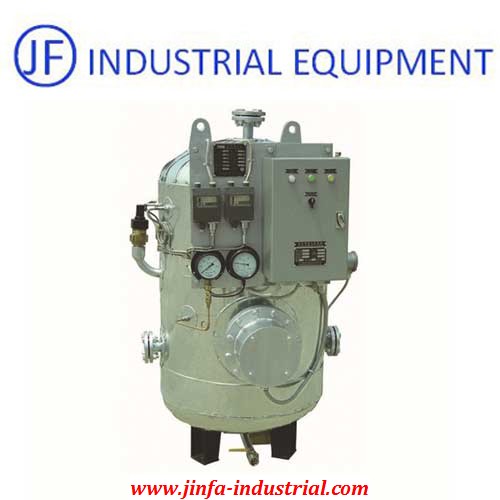

Product Pictures:
Specification:
| Type | DRG- | ||||
0.12 | 0.2 | 0.3 | 0.5 | 1.0 | |
Capacity(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 |
Working Pressure(MPa) | 0.4 | ||||
Design Pressure(MPa) | 0.44 | ||||
Test Pressure(MPa) | 0.66 | ||||
Safety valve open pressure(MPa) | 0.42 | ||||
Water Inlet Temp.(ºC) | 15 | ||||
Water Outlet Temp.(ºC) | 65 | ||||
Hot- water Capacity(kg/h) | 180 | 360 | 540 | 720 | 900 |
Electric-heating power(Kw) | 12 | 24 | 36 | 48 | 60 |
of insulation layer thickness(mm) | 40 | ||||
Outsourcing galvanized steel thickness(mm) | 0.7 | ||||
Source | AC 380V.50Hz.three phase /AC 440V.60Hz.three phase | ||||
Note: The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!
