Inlet Dome Valve DN200 CH3564D-00

Inlet Dome Valve DN200 CH3564D-00

Introduction:

It is specially used for pneumatic conveying system, and can also be provided to customers as an independent product.

Applications in industry include power, food, medicine, chemical, plastic, mining, steel and other industries.

Commonly used conveying materials include: grinding materials, particles, powder, ash, chemicals, ores, coal, fragile products, etc.

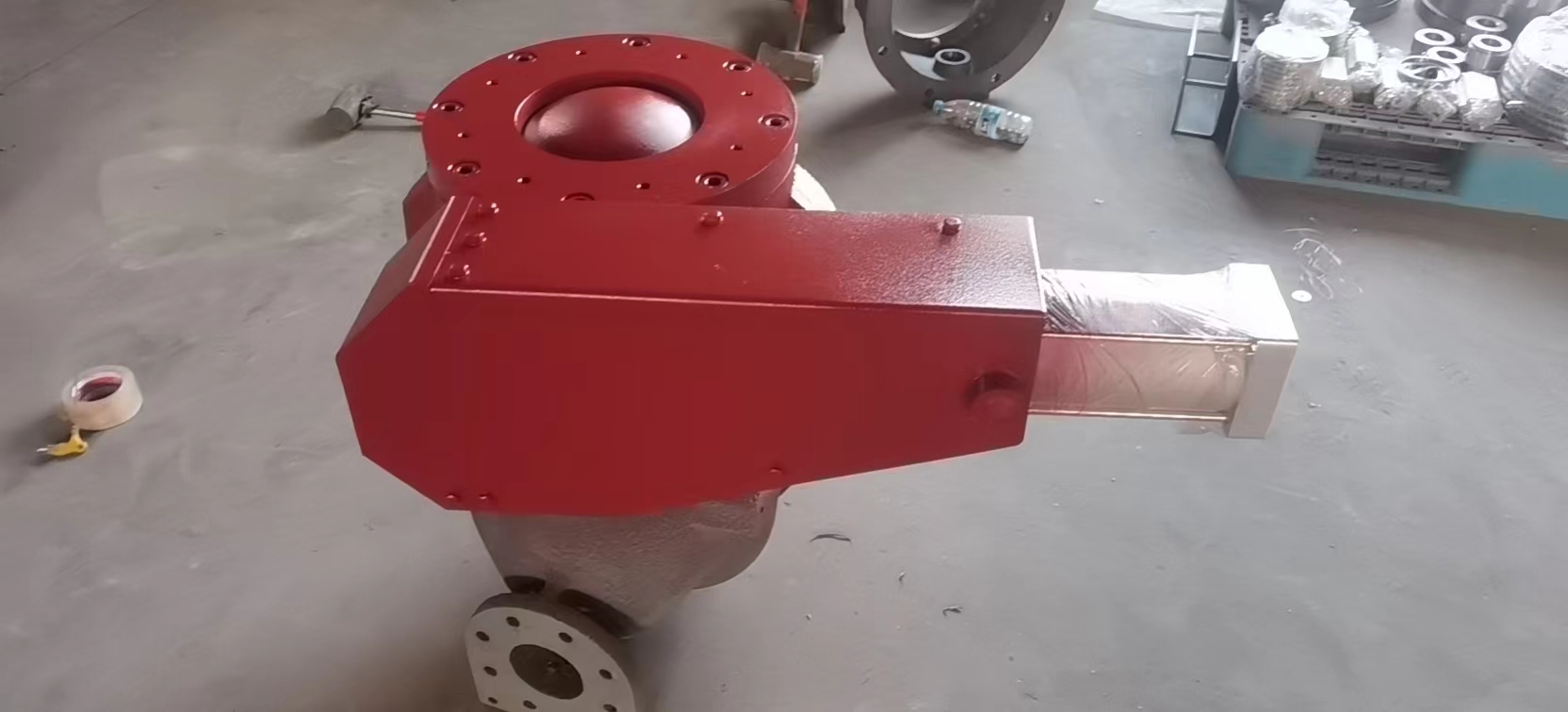

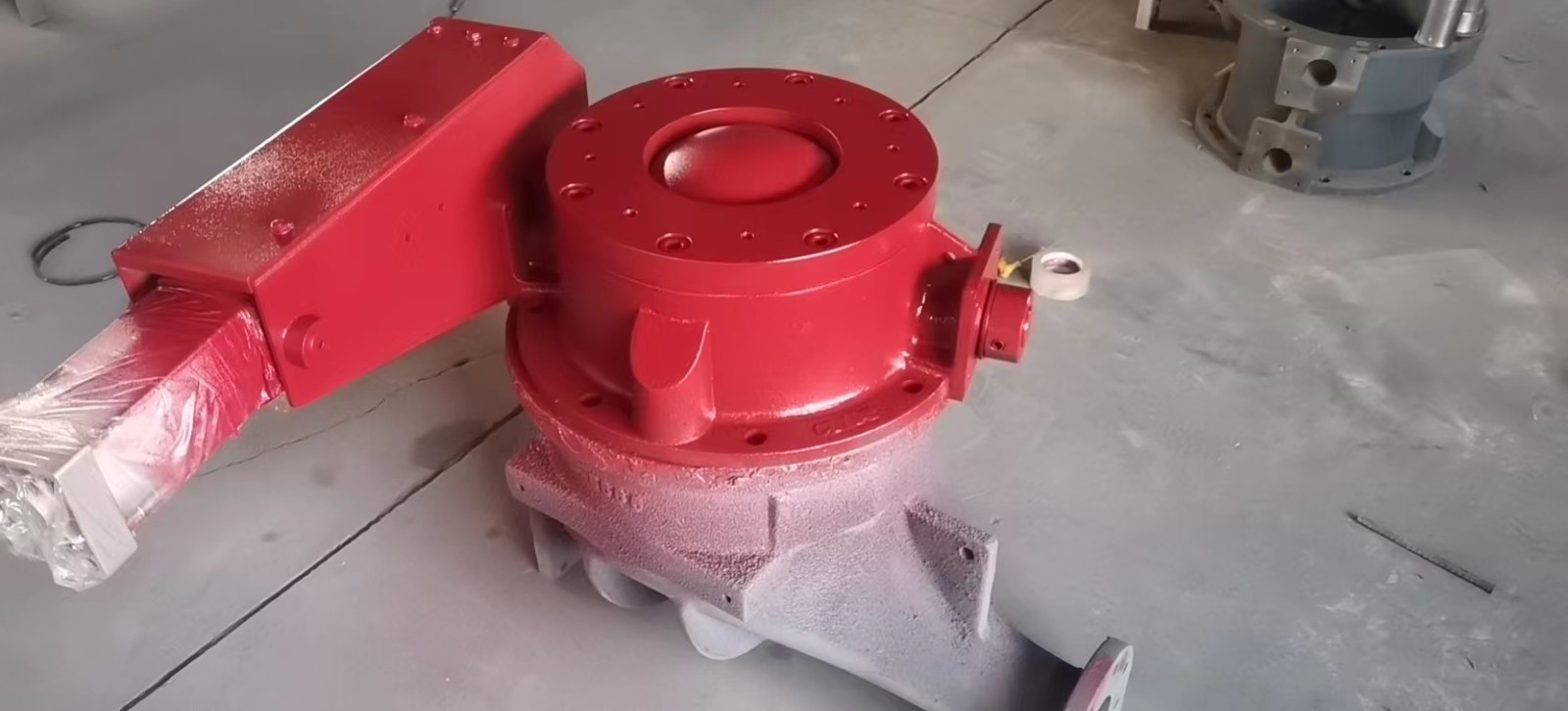

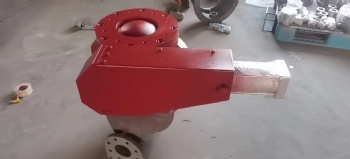

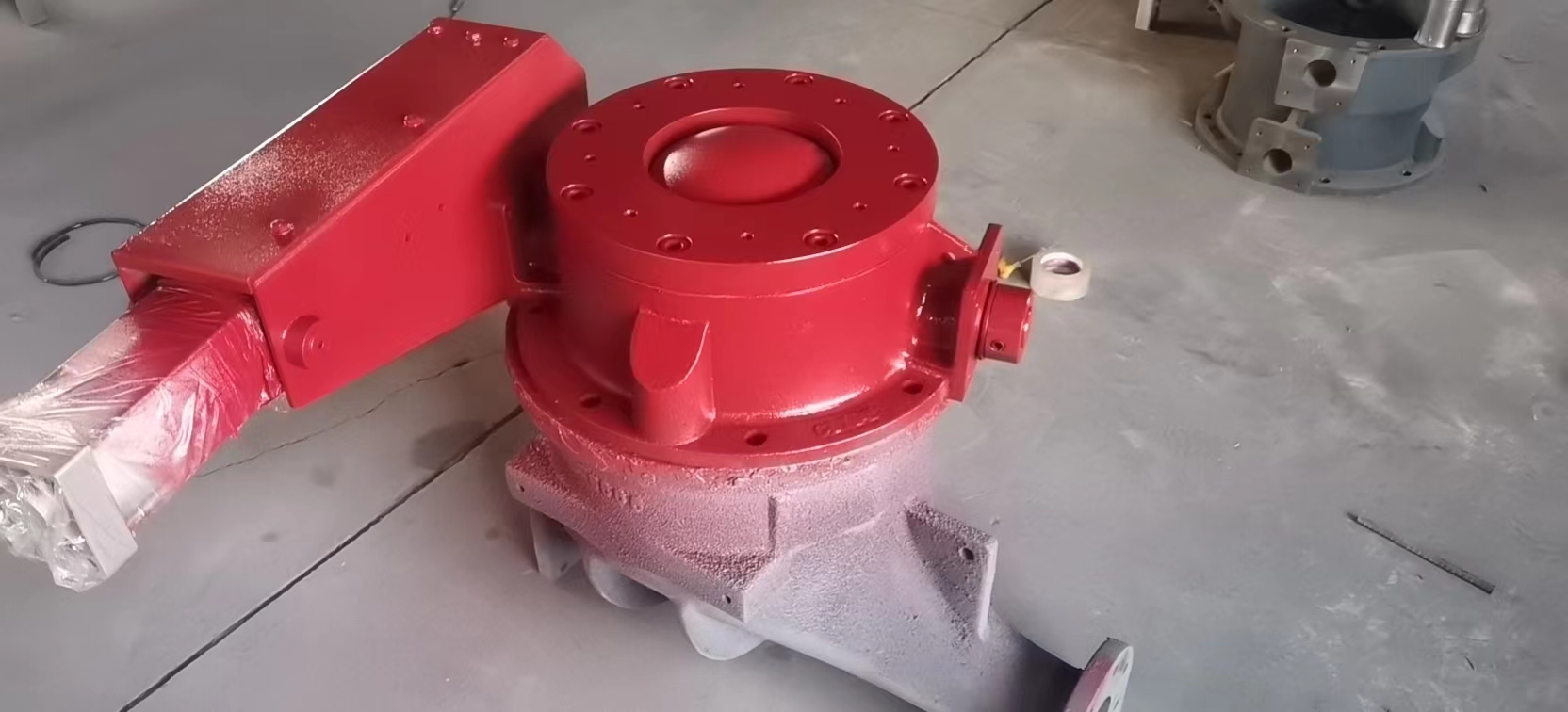

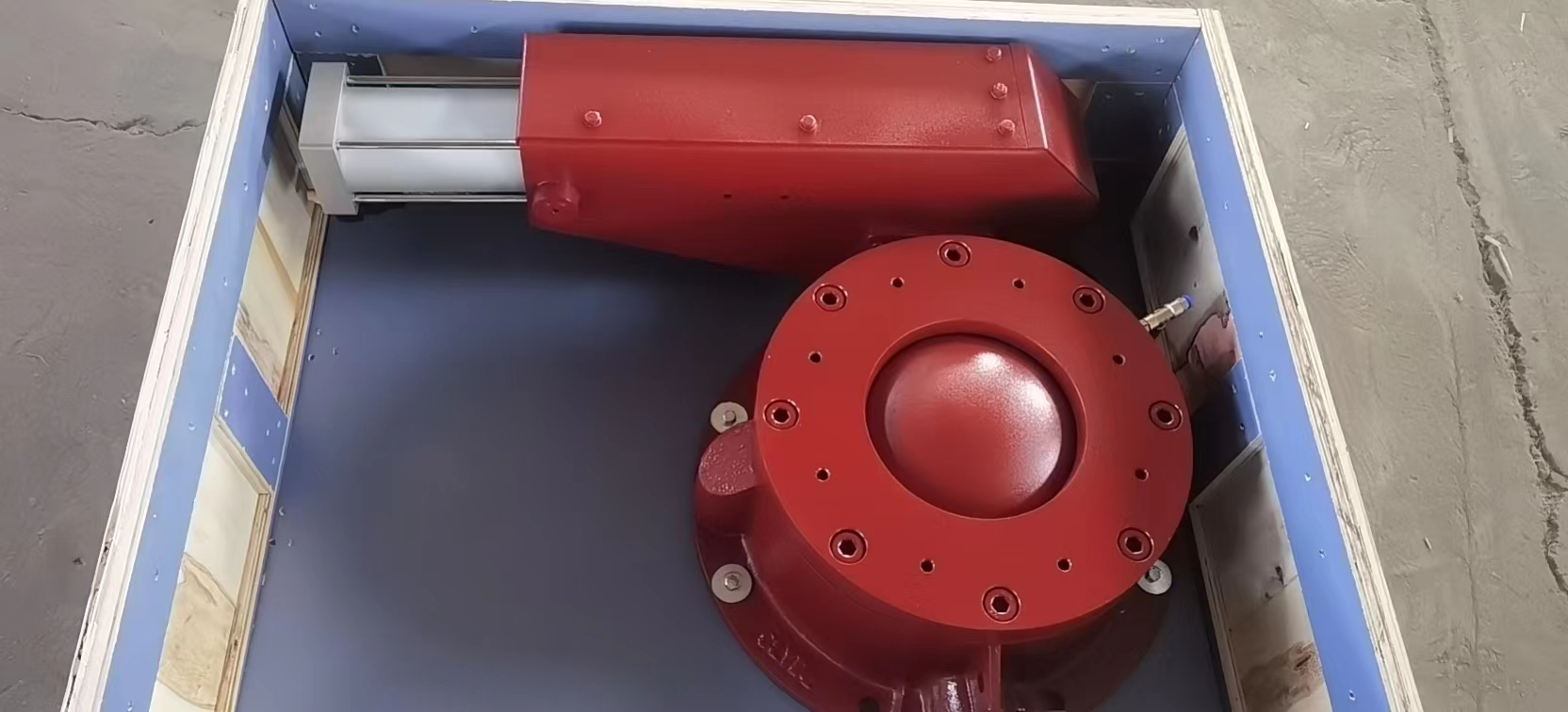

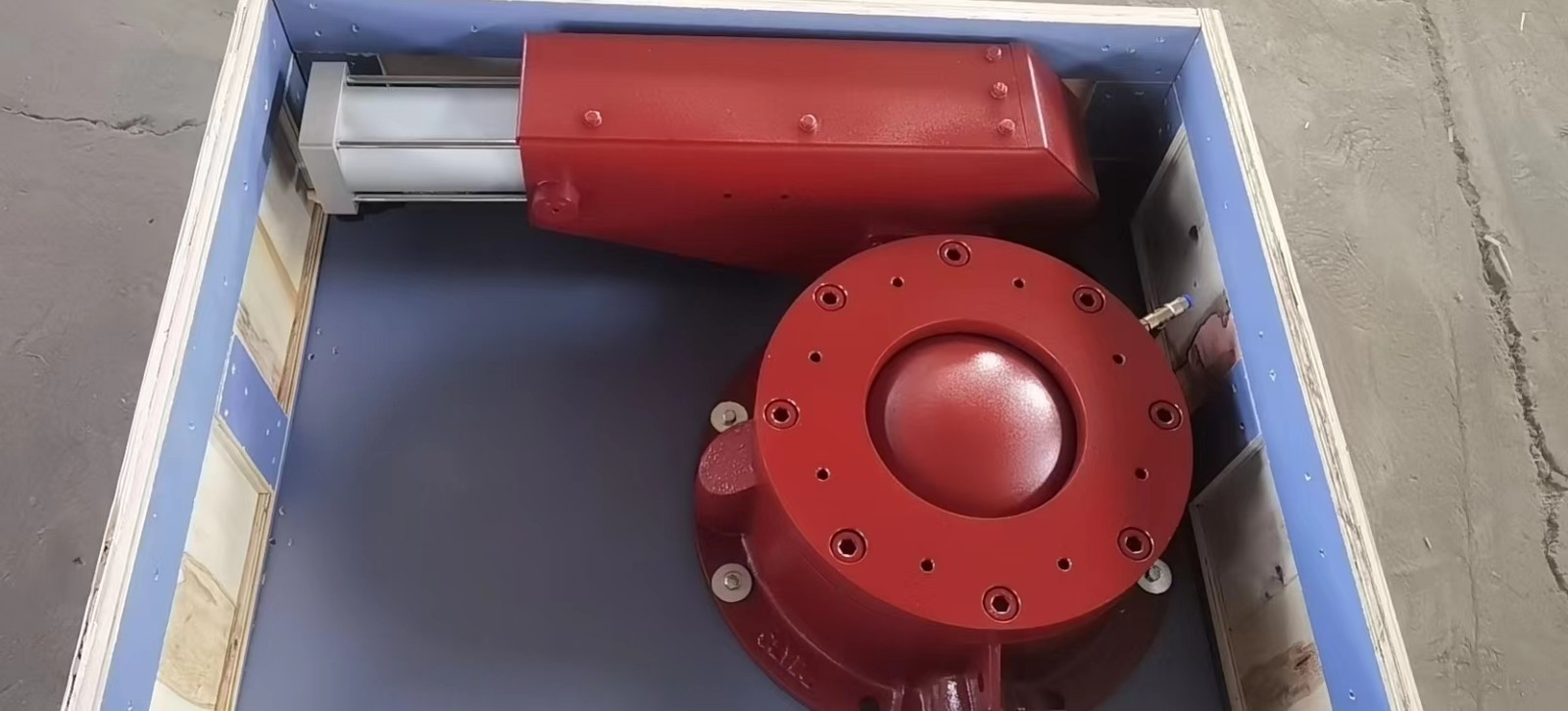

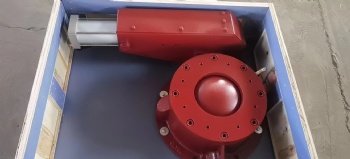

Inlet dome valve DN200 CH3564D-00

Main configuration of inlet dome valve DN200 CH3564D-00:

straight stroke cylinder DN200 P22457E-00, limit switch A1011,

valve body DN200 CP26999B-01, dome DN200 CP1158B-00, transmission shaft DN200 CP1016D-00, combined bearing DN200 P8011D-00,

V-shaped dust ring ￠ 75 DN200 M3415, shaft seat DN200 CP19642E-00, VARI seal ring ￠ 50 DN200 M1171, spacer ring DN200 CP2147C-00,

spring cylindrical pin ￠ 14X80 DN200 GB879-86, O-ring ￠ 50 DN200 M1162, top plate DN200 CP29669D-00, top joint DN200 P29757B-00,

sleeve ring DN200 CP29617D-00, support ring DN200 CP29616D-00, plug-in seal ring DN200 P5524C-01, O-ring DN200 M5206,

casting coupling DN200 CP21761C-00, coupling DN125 DN 150 CP19643E-00, Y plug-in sleeve ￠ 25 x ￠ 20 DN200 M3017,

spring cylindrical pin ￠ 14X90 DN200 GB879-86, High temperature plug-in seal ring DN200 P17460C-01, seal assembly DN200 M3231,

bottom joint DN200 CP4355B-00, cylinder maintenance assembly DN200/100 A2376, cylinder upper support 200mm dome valve CP21584B-00, etc

Features:

① . No obstructed material flow in the whole chamber

② Simple and reliable design

③ Flexible opening and closing, can turn off dynamic and static material columns

④ Complete specifications and dimensions: DN50-DN300

⑤ . It can form a firm pressure seal when closing

⑥ It can withstand the temperature of - 20 ℃ to 480 ℃

⑦ Long service life and low maintenance

⑧ The material conveying system of the power plant operates normally, and the service life of the plug-in seal ring is more than one year
