Marine Horizontal Windscreen Electric Wiper

Marine Horizontal Windscreen Electric Wiper

Introduction:

The horizontal marine wiper is a new type of electrical product used for scraping the side window of the ship's cab.

It uses the driving motor as the power source, drives the rubber blade installed at the lower end of the wiper rod through the deceleration and transmission mechanism,

and uses the shell as the guide rail, and makes a parallel scraping test on the side window glass to keep the side window clear when waves and rain beat and snowflakes fall.

This product is equipped with a heater.

Main technical parameters:

1. Power supply voltage: AC220V, AC110V

2. Power supply frequency: 50HZ/60HZ

3. Scraping speed: 0.3~1.2m/s 4. Motor input power: ≤ 90W

5. Heater power: ≤ 450W 6. Protection grade: IP56

7. Overall dimensions of control box (for reference only):

Box (mm): length × wide × Deep panel (mm): length × wide × thick

The size of the control box can be customized according to customer requirements

8. External dimensions of power box:

Box (mm): length × wide × 234 deep × two hundred and forty × 125 Installation dimension (mm): 210 × two hundred and sixty-five

9. Body weight: 15-26Kg

Details Wiper Photos:

Features:

Connects wiper motor to the wiper blade
Increases the efficiency of keeping the glass clean
Provides even pressure over the length of the rubber blades
Clears objects without streaks
Easy to install

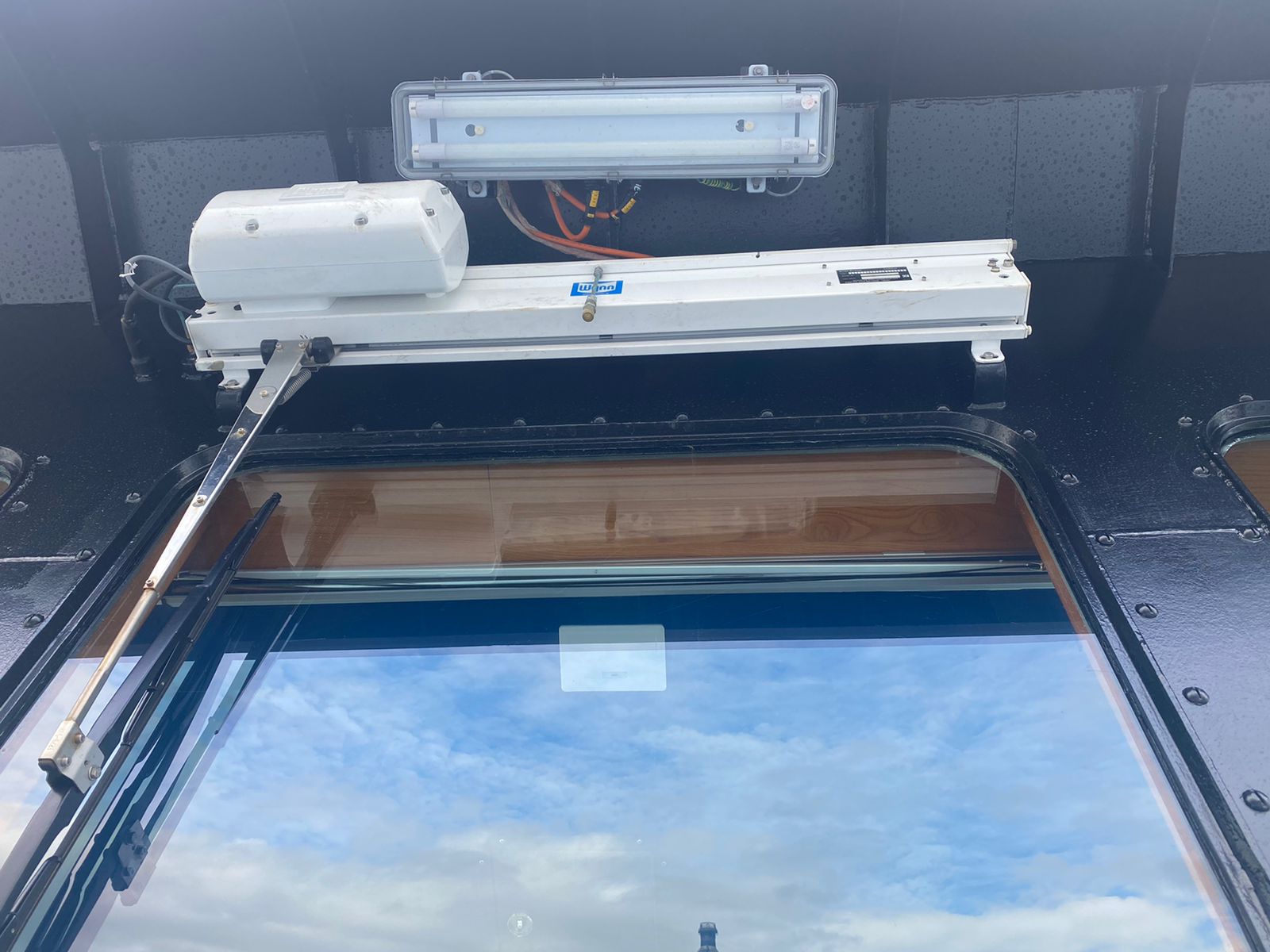

Customer's installation Feedback:

Notice to users:

1. When ordering, please indicate the product model, scraping test stroke, scraping rod and scraping blade length and whether a heater is attached.

2. If there are special requirements for product size or other aspects, both parties shall confirm the technical status when ordering,

and arrange production according to the drawings confirmed by both parties.
