Introduction:

WS-310R, WS-350R marine rotary window/marine wiper, WQ-310R rain and snow remover (heated)

The marine clear view screen is suitable for being installed on the observation window of the cab.

The centrifugal force generated by the high-speed rotation of the glass window driven by the motor

in the center of the frame is used to throw away the rain, snow or waves attached to the window,

so as to maintain a clear vision; The airtight type can effectively prevent the smell outside the window from entering the cabin

and keep the indoor air fresh. In addition, this product has an electric ice melting device, which is suitable for all-weather navigation.

WS-310C, WS-350C marine clear view screen (WQ-310 rain and snow remover).

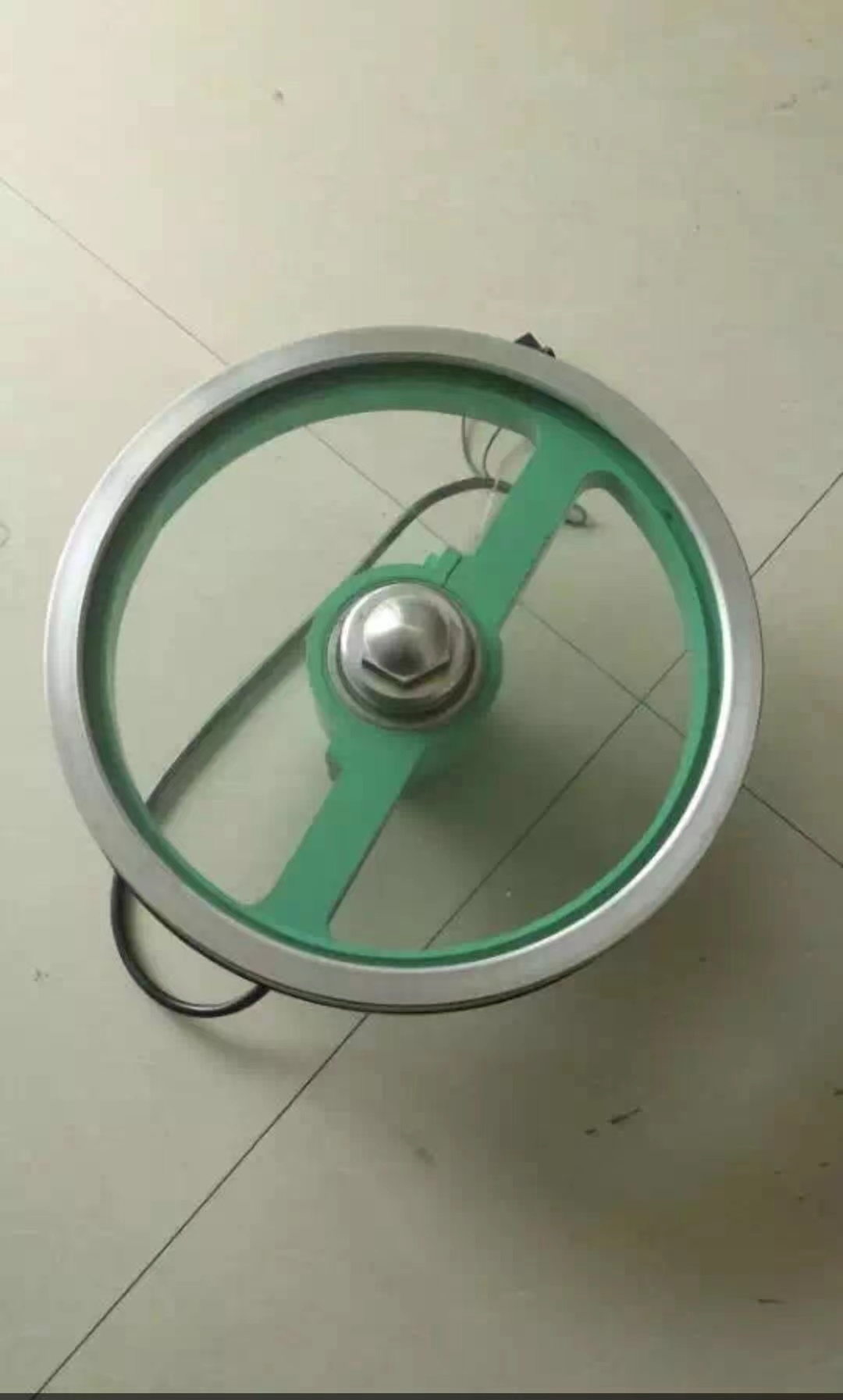

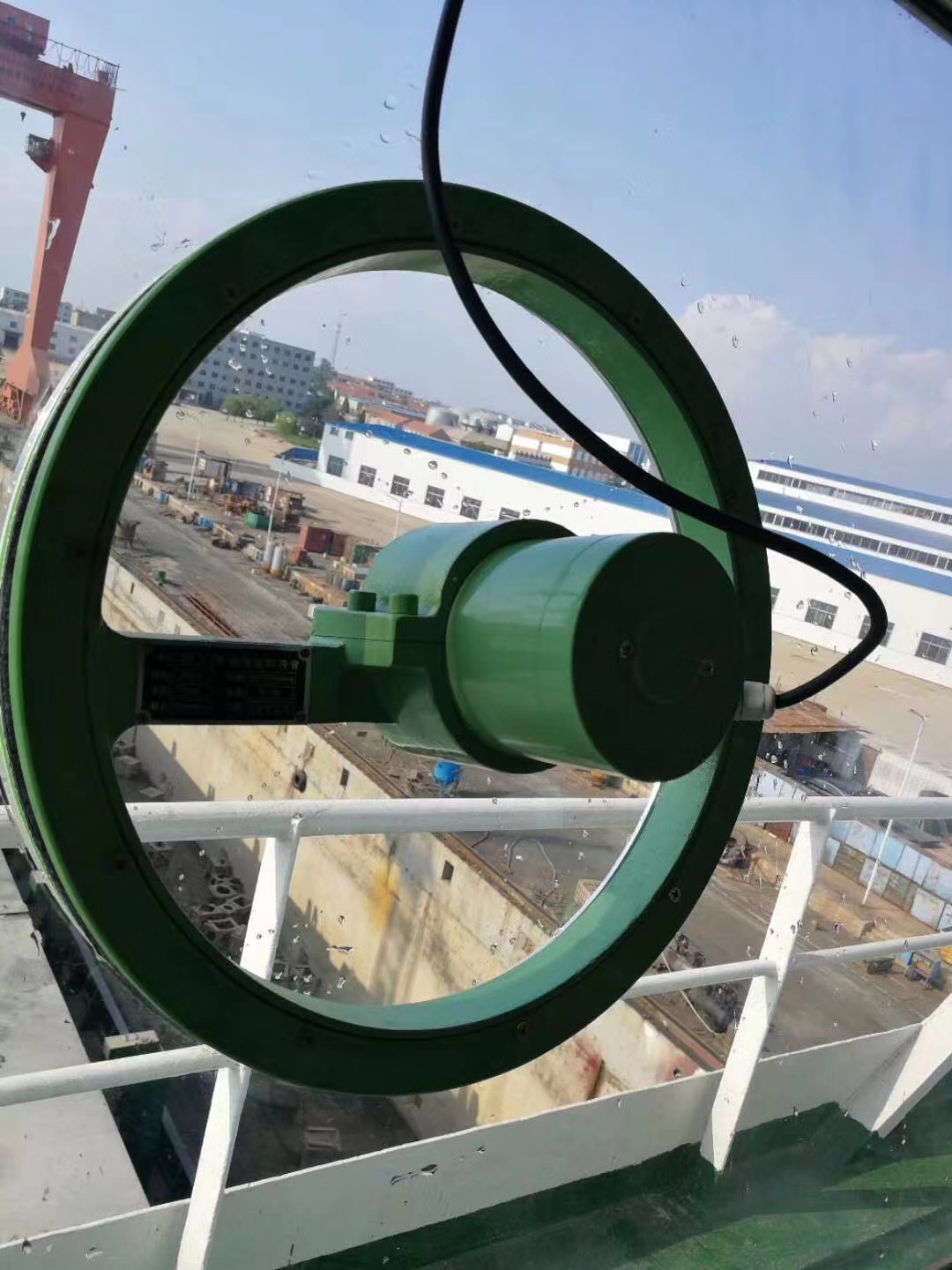

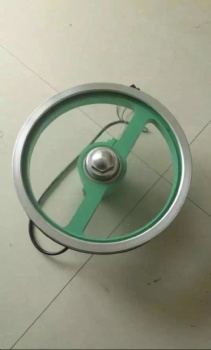

Details Wiper Photos:


Specification:

This product complies with CB644-1992 Marine Clear View Screen

Main Technical Specifications:

1. Power supply voltage: AC 220V (AC 110V needs to be ordered)
2. Power frequency: 50Hz/60Hz
3. Input power: ≤ 90W
4. (Note) Power of electric heater with electric heating device: ≤ 250W
5. Protection grade: Outdoor part: IP56  Indoor part: IP23
6. Installation wall thickness (mm): 8, 10, 12, 15, 19
Note: The manufacturer shall be informed when the installation size is 15~19mm
7. Motor speed 1400 ± 200 rpm


Package and transport:


Package Mthod: Carton.
Transportation method: Global air,sea land freight, TNT / EMS / UPS / DHL / FedEx etc.
Delivery time: 3-15 work days
