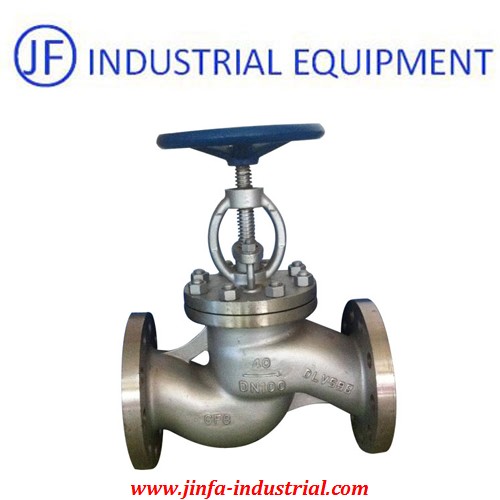

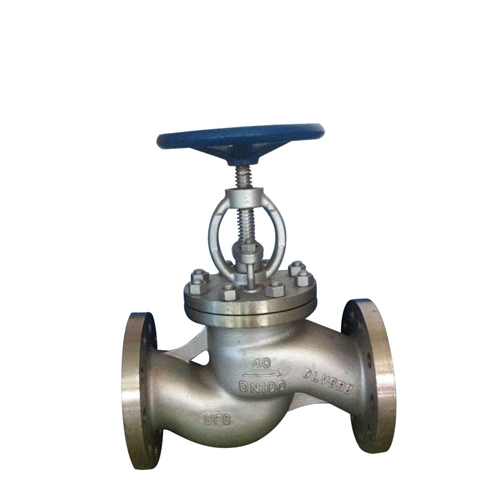

Stainless Steel DN50-500mm Flange Type Marine Globe Valve

Stainless Steel DN50-500mm Flange Type Marine Globe Valve

Marine Valves:
Classification: marine butterfly valves, marine gate valves, marine ball valves,
marine stop valves,marine check valves,marine stop check valves,
marine storm valves, marine hull valves, marine fire valves,
marine safety valves,pressure reducing valves,quick-closing valves,
marine breather valves,etc.
EMAIL INQUIRY

Stainless Steel DN50-500mm Flange Type Marine Globe Valve

Marine Valves Range:

marine butterfly valves,
marine gate valves,
marine ball valves,
marine stop valves,
marine check valves,
marine stop check valves,
marine storm valves,
marine hull valves,
marine fire valves,
marine safety valves,
pressure reducing valves,
quick-closing valves,
marine breather valves,etc.

Features:

Material: cast steel, cast iron, bronze or stainless steel.

Drive mode: manual,electronic,air drive, hydraulic drive and remote control.

Connection mode: Flange joint or screwed joint .

Standard: ISO,CBM,JIS,ANSI

Note: We provide all kinds of the marine valves, also welcome the OEM and drawing supplied production for non-standard model.

For more information, please do not hesitate to contact us: sales@jinfa-industrial.com !

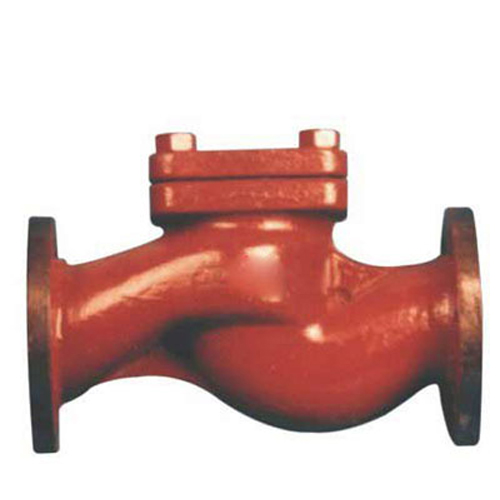

Marine Valves Sample Photos:

Main Part & Materials of Valve:

Part Names	Part Materials
Body	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Bonnet	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Disc/Ball/Wedge	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Stem	F6a	F304	F6a	F304	F316	F304L	F316L	C83600/C95800
Seat/Seat Ring	13%Cr	SS304	13%Cr	SS304	SS316	SS304L	SS316L	C83600/C95800
Packing	Graphite/PTFE
Gasket	SS304+Graphite/SS304+Graphite
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M	B8M/8M
Suitable Medium	W.O.G etc.			HNO3, CH3OOH etc.				Sea Water etc.
Suitable Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C	-29~220 °C
