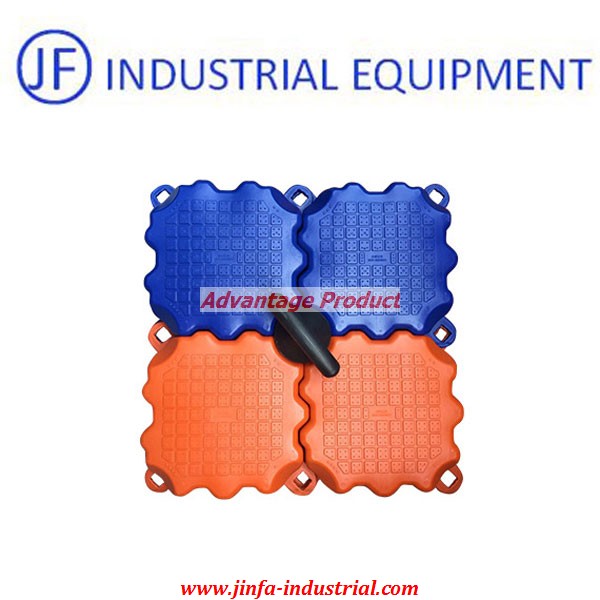

0.5*0.5*0.4m HDPE Marine Modular Float Dock

0.5*0.5*0.4m HDPE Marine Modular Float Dock


Float Dock

Our main product are floating dock and accessories , which could be used for floating dock ,

floating platform , floating bridge , jet ski dock , jet boat dock etc .


Feature:


Load Capacity:

Each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)

Anti Wind Wave:

1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention: to avoid shaking of the dock, the area of internal lake's dock is not less than 30 square meter; the area of stage is not less than 100 square meter.

Anchoring:

1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels,

which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.

Float Dock Main Dimension:


Specs:

Dimension: 500mm×500mm×400mm(L*W*H)
Weight: 7.0Kgs/ pc ± 0.3Kgs/ pc
Floating Capacity: 350Kgs/ M2
Raw Material: HDPE with UV
Preference Temperature: -60°C/+80°C Color available: orange, blue, gray, black

Float Dock Accessory:

Package and Delivery:

Loading Details: About 60 square meter/20GP Container, 130 square meter/40GP container.


Float Dock Application:

Our Service:

We make various kinds of roto moulded products according to clients requirements. High quality,

competitive price and excellent after sales service.Our products have enjoyed good reputation from all our customers.

Guarantee:

Warranty on our float dock are 3 years, that is within three years,

if there is any damage caused by the product in normal condition, we will replace the floats for you.
