Marine 20 Channels Navigation Signal LED Light Controller

Ship 10-20 Channels Navigation Signal Light Controller

Product Introductions:

DK series havigation sighal light controller fully meet the requirements of CCS specifications and it is a new ship signal light control and monitoring equipment launchedby our company.

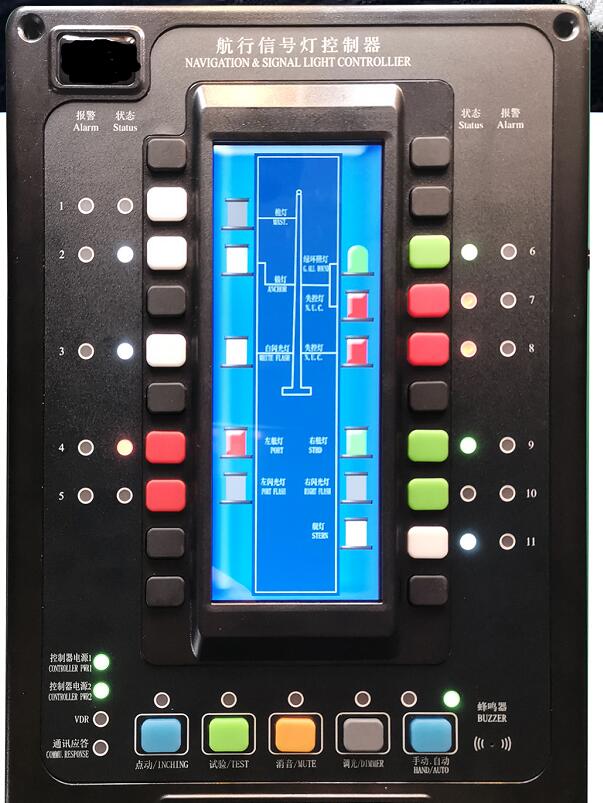

The controller can monitor and display the on/off status of 20 navigation lights,16 signal lights,1 Morse light and 3 flash lights.

The controller can check the status of all navigation lights and signal lights onthe ship at one key, and can turn the lights on and off by pressing the key.

Once a light on the ship goes out or thecorresponding line fails,the controller will give an audible and visual alarm.

Among them, the LED navigation signal light controllerhas realized the monitoring and control of navigation lights and signal lights with LED as the light source,

and there are two power supplies with functions such as dimmer, mute, light testing, coding, monitoring and alarm, as well as the guarantee of dual operation of LCD touch screen and silicone keys.

The actual operating power of LED navigation signal light can be displayed through monitoring and adjustment, and the service life of LED navigation signal light can be displayed through adjustment.

You can also set and switch the color of LED navigation signal lights to achieve free switching between navigation lights, signal lights and flash lights.

Technical Parameters:

Specific Usage:

Relative Humidity:≤95%(40℃)

Air pressure:86kPa~106kPa

Bulb Rated Power:2~65W

Bulb Voltage:DC24V or AC 220V(optimal)

Normal Usage:

EnvironmentTemperature:-10C~+55℃

RelativeHumidity:30%~90%

Air Pressure:86kPa~106kPa

Spare Power:DC24V +25%

Main Power:AC220V±10%

Controller Static Power Consumption:220V,50mA

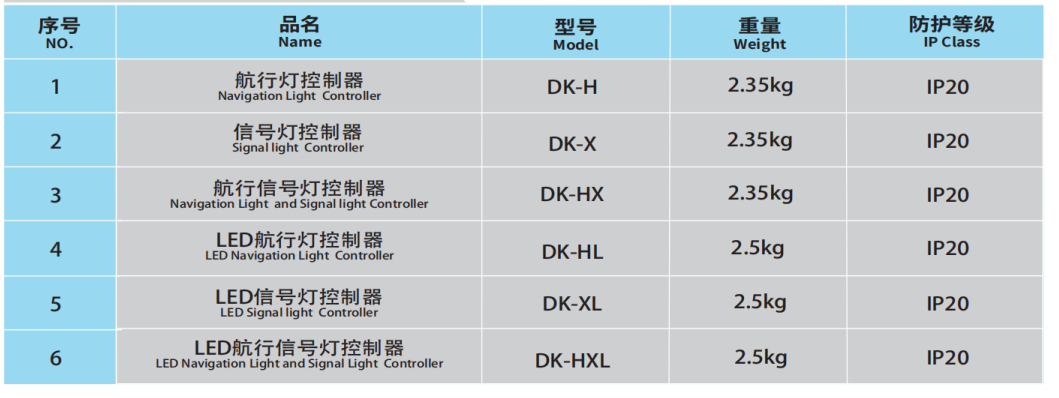

Supply range of navigation lights controllers:

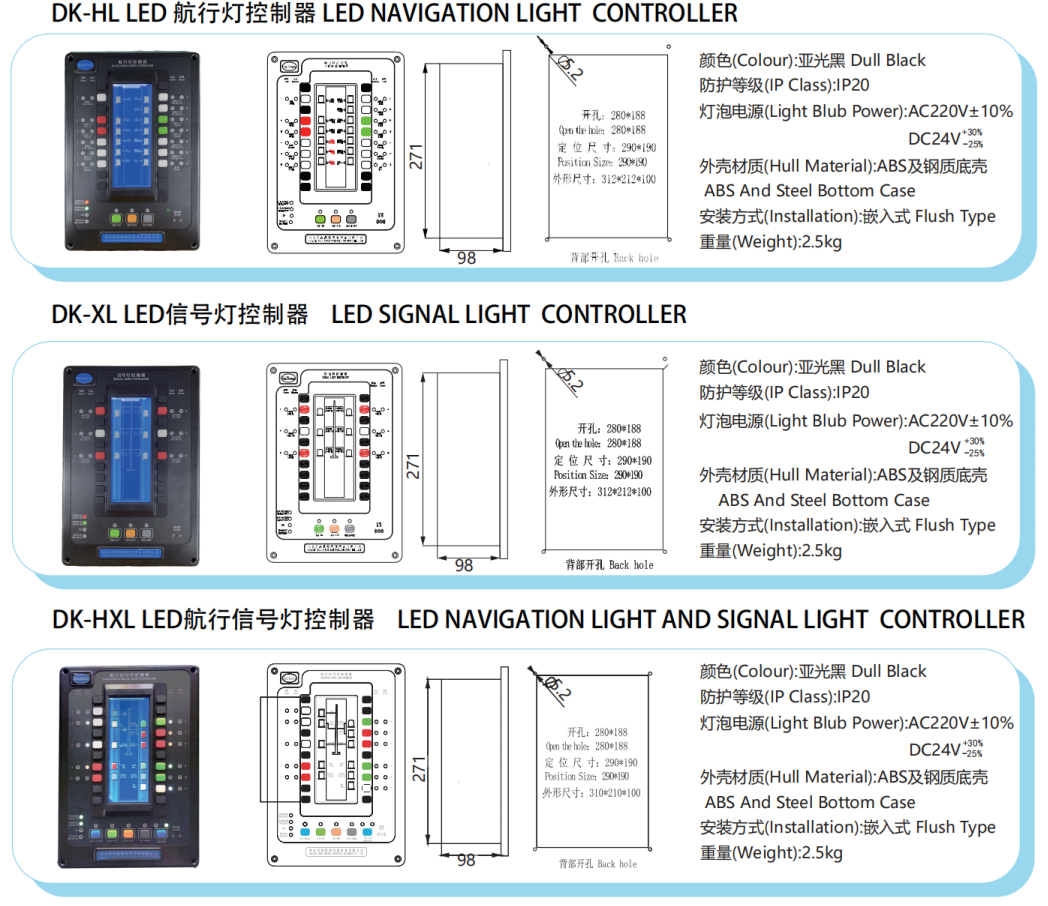

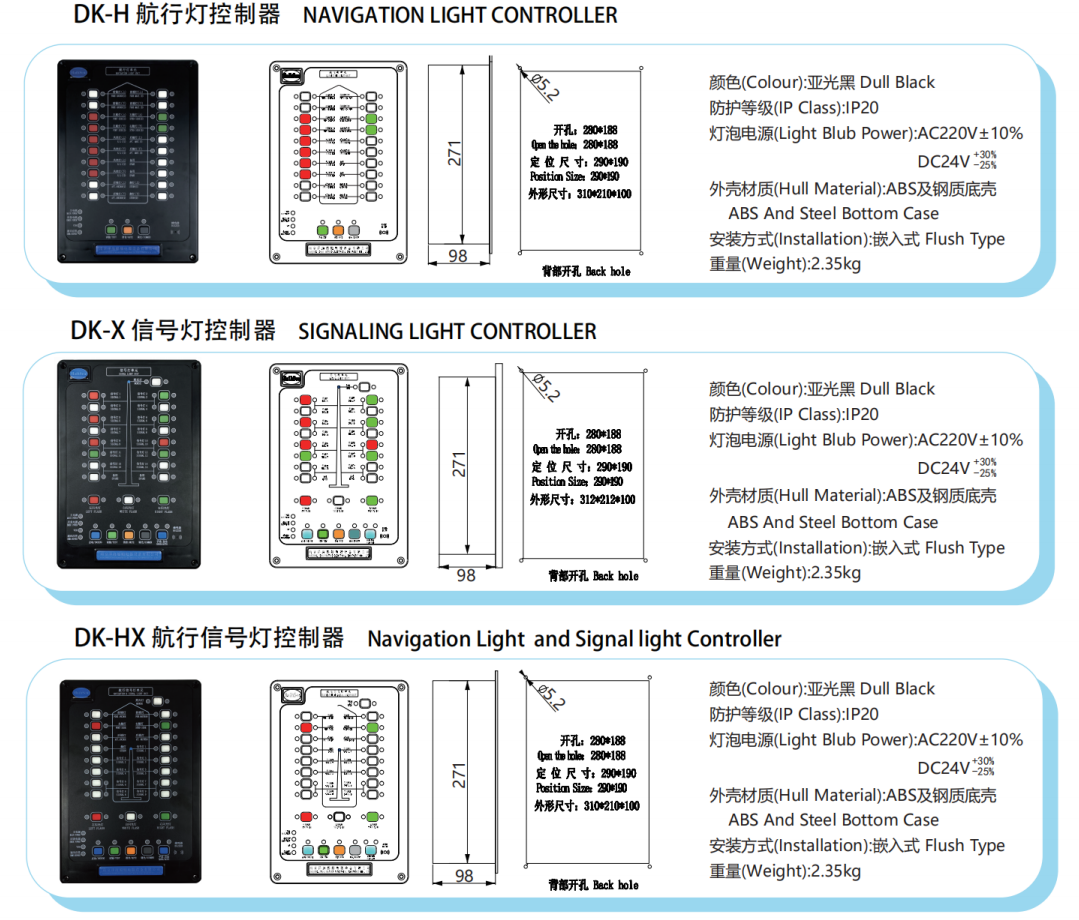

Customized navigation lights controller panel :

1.The controller panel keys can control up to 20 circuits ofexternal bulbs,and thelamp panelsurface can be customized according to the system diagram of thedesign institute and the mast layout;

2.The external bulb voltage can be AC220Vor DC24V according to the actual needs;

3.Different colors such as white,green,blue,orange,gray and red are availablefor the controller keys which can be equipped based on the diagram.
