CCS Approval Ship Fire Alarm Smoke Detector

CCS Approval Ship Fire Alarm Smoke Detector

Introduction:

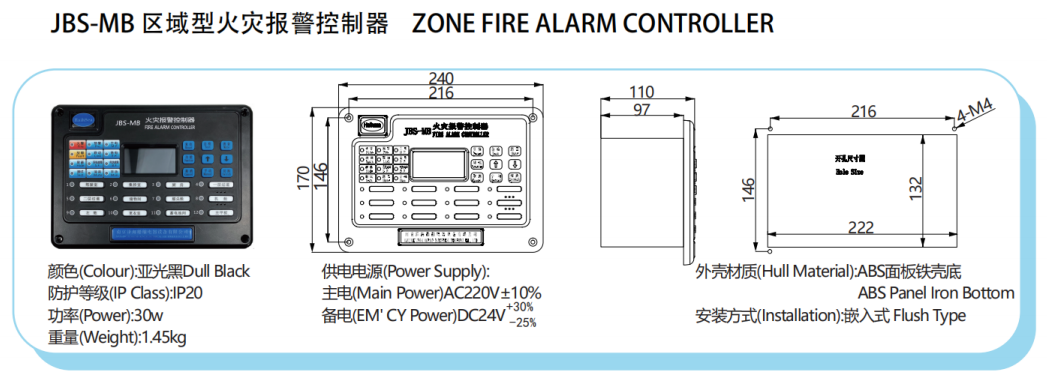

The fire alarm controller JBS-MB series(short for controller) is our latest intelligent marine control-ler.

The controller is mainly connected with 800 series and 900 series intelligent detectors and 500 series,

900 series and HD05 manual alarm buttons of Xi'an Shengsaier Electronics Co., Ltd,

the controller perfectly suits for the detection of initialfire at the vessel site which can prevent the huge damage from the possible big fire.

To detect the possible fire in its initial stage precisely, the controller has lots of intelligent features such as drift compensation,smoothing,sensitivity adjustment,

self-optimized pre-alarming and comprehensive detection and maintaining warning.

Technical Parameters:

Main Power: AC220V±10%,

Spare Power:DC24v+30%-25%

Output current and voltage:1A/24V

Tactic Power Consumption:220V 100mA

Environment Temperature:-10C-+55℃

Environment Humidity: 95%RH

With measures against mildew.salt fog and humidity,

With measures against vibration,impact and incline.

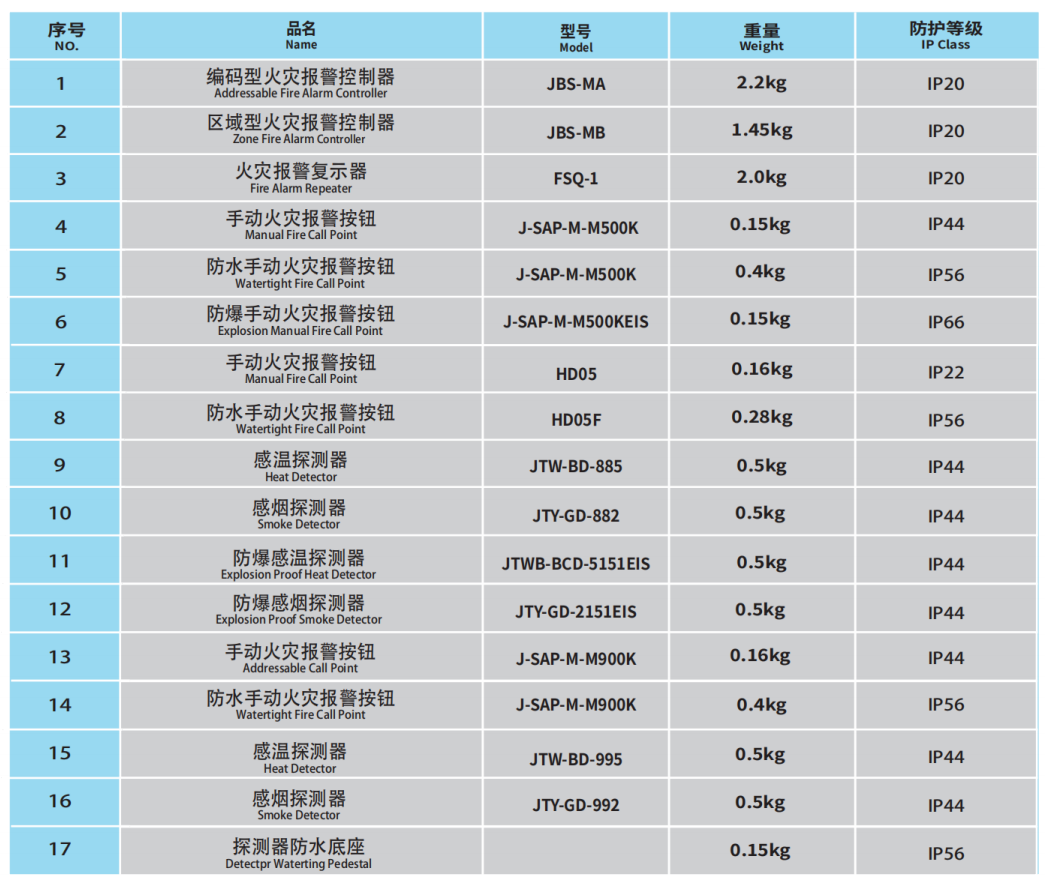

Range of Fire Alarm System:

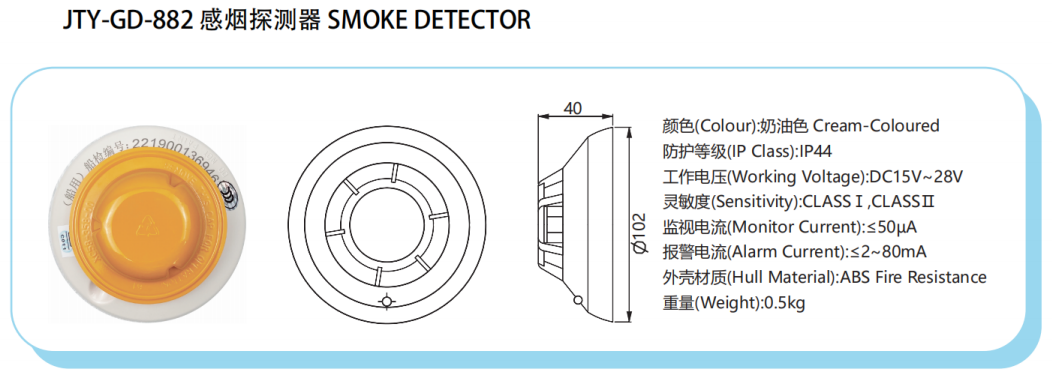

Specifications of smoke detector:
