Boat Manual Quick Release Spring Tow Hook
Introduction:
The marine spring quick release tow hook enables the vessel to be safely towed under harsh working conditions and allows the towing line to be released under slack or completely safe working loads.
The towing hook has a quick release mechanism, which is convenient for the towing cable to be separated instantly, ensuring the safety of the tug and the personnel. The hook can be released manually,
or it can be released from the wheel cover by pulling the release line or pressing a button. The remote control system can be equipped with hydraulic or pneumatic release mechanism
Range of Tow Hook:

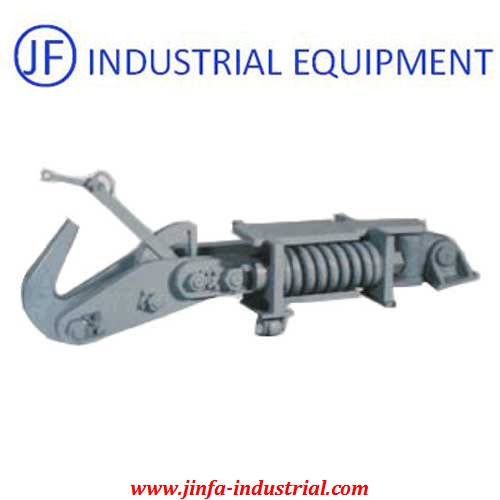

Sample Tow Hook Pictures:
Specification:
TYPE | SWL(t) | H | L | B | Φ | R |
JF15 | 15 | 240 | 1380 | 134 | 85 | 880 |
JF20 | 20 | 255 | 1520 | 144 | 85 | 920 |
JF30 | 30 | 265 | 1680 | 152 | 95 | 940 |
JF40 | 40 | 280 | 1860 | 200 | 105 | 1050 |
JF50 | 50 | 285 | 1920 | 204 | 110 | 1100 |
JF60 | 60 | 290 | 1960 | 204 | 110 | 1150 |
JF80 | 80 | 340 | 2100 | 210 | 130 | 1310 |
JF100 | 100 | 380 | 2300 | 220 | 150 | 1430 |
Note: We accept the customized tow hook according to your project's drawing, products support CCS certificate request.
