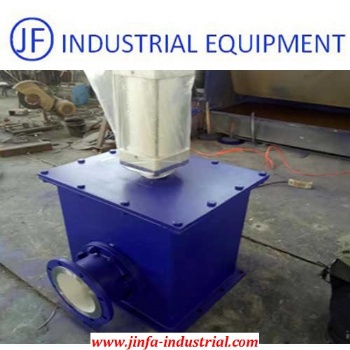

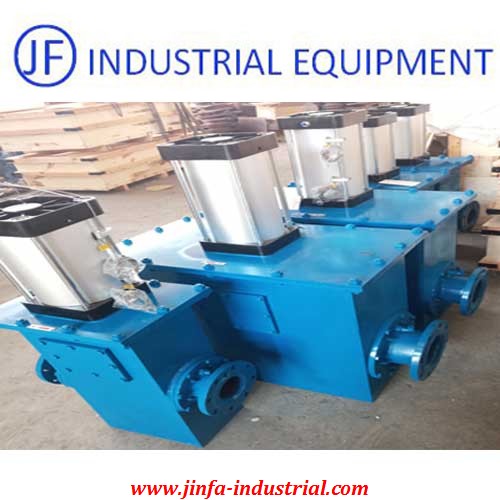

DN100 Pneumatic Silo Top Switch Valve

DN100 Pneumatic Silo Top Switch Valve

Application:

The silo top switch valve is installed on the top of the silo and is used for switching between the conveying pipeline silo.

It has the advantages of convenient switching, good sealing, compact structure and small footprint. It is an important part of the pneumatic conveying system.

The valve adopts an inflatable sealing ring. When the valve is opened and closed, there is no contact between the valve core and the sealing ring.

After the valve is switched, the sealing ring is inflated to achieve elastic deformation for sealing.

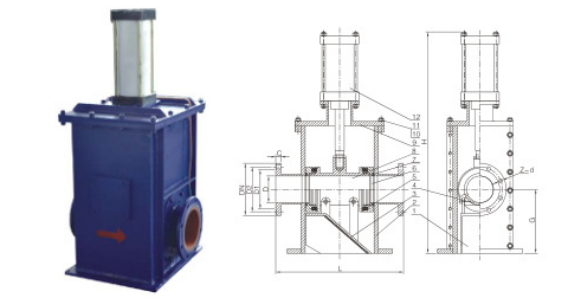

Valve Structure:

Technical Features:

Diameter Size: DN100-DN350

Working Pressure: Class 150, PN16, PN10

Valve Body Material: Fabricated Carbon Steel or Stainless Steel

Valve Seat: Alumina Ceramic Al2O3

Trim: Fabricated CS Cylinder lined with Ceramic

Flange End Connection Standards: GB/T, JIS, DIN, API all are available

Valve Operator: Double acting pneumatic actuator.

Recommend Install Position: in the top of bulk silo.

Valve installation, use and maintenance

The valve should be cleaned before installation, and the defects that may be caused during transportation should be eliminated.

Check carefully whether the identification and nameplate on the valve meet the requirements for use.

This valve can only be installed on horizontal pipelines. If it is stored for a long time, it should be stored in a dry and ventilated room

and checked regularly to prevent rust. Prevent bumps during transportation.

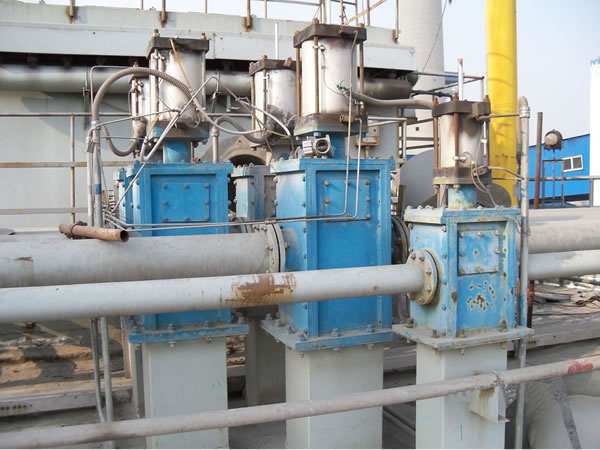

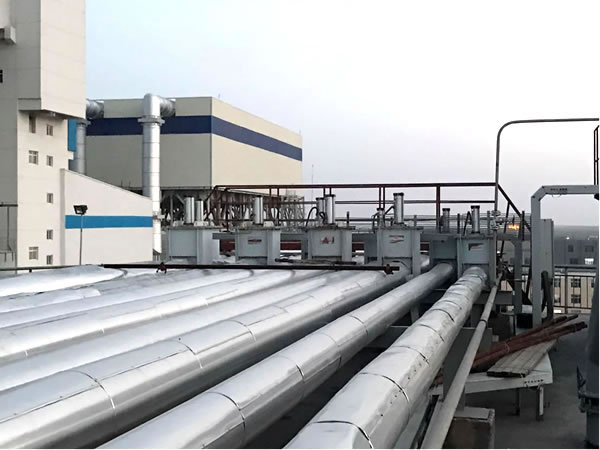

Installation Feedback Photos:
