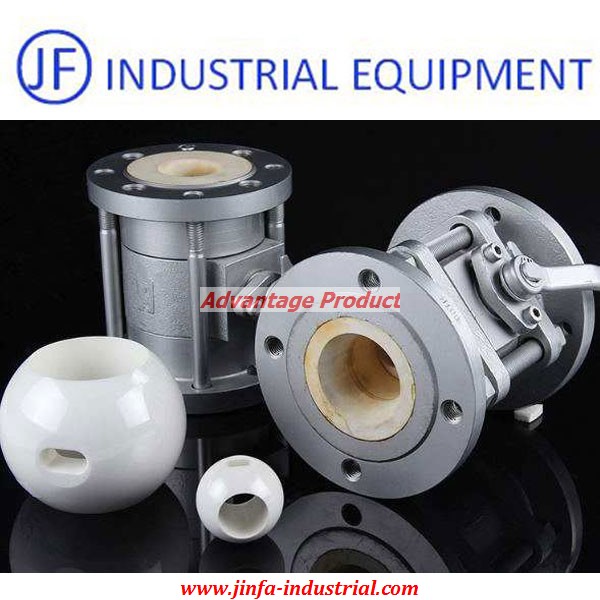

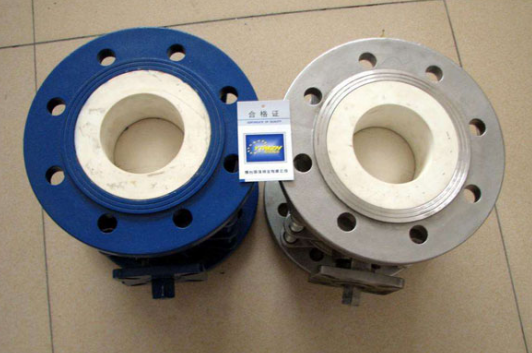

DN20-200mm Alumina Ceramic Ball Valve
Introduction:
We supplies a large variety of valves and valve configurations for varieties of purposes and conditions: different uses (on/off, control),
different fluids (solid, liquid or gas; combustible, toxic or corrosive), different materials (metal or nonmetal)
and different pressure and temperature (low, medium or high pressure applications and low-, room- or high-temperature applications).
Products Range:
Knife gate valve, plug valve,valve, butterfly valve, segment ball valve,slurry valve,
discharge valve, gate valve, globe valve, check valve, ball bellow valves, strainer, etc.
Technical Features:
● Ceramics withstand severe abrasion.offering as much as 30X that of alloy materials
● Process media is prevented from contacting alloy body that is fully lined with structural ceramics
● Ceramics are nearly universally chemical resistant.
● Full control options, including 4-20mA positioner and actuator.
● Multiple ansi and din flange standards available.ANSI 150, 300 and 600 classes are also available.
● Ceramic seat materials are selected on an application basis. Options include Alumina, Zirconia,Silicon Carbide, and others.
● Seat and Ball are lapped together in matched sets to insure positive sealing.
● Materials are selected on an application basis.Options include Super Duplex Stainless Steel,Hastelloy, Stainless Steel, Cast steel and others.
Specification:
Pressure rating and size: | PN10 to PN40,ANSI Class150 to Class 300 |
DN15 to DN200 | |
1/2"~8" | |
Material: | Body : WCB, CF8, CF8M,CF3M |
Bonnet :WCB, CF8, CF8M,CF3M | |
Ball : Complex Ceramics | |
Stem :2Cr13,SS304, SS316 | |
Seat : Complex Ceramics | |
Special material on request. | |
Operated type | Pneumatic,Manual,Electric |
Structure: | Floating or trunnion mounted ball, full or reduced bore, 3pcs |
Flange connection: | EN1092 & ANSI B16.5 & JIS |
Type | Flange RF, RTJ |
Goal: We insist in offering the high quality products and best service to our customers.
We aim for more advancements and new heights in both services and technology.
Used in these Applications:
• Flue Gas Desulfurization (FGD)
• Slurry Control Applications
• Pneumatic transportation of powders
• Chemical Production
