Qp745 DN250-500mm Hydraulic Equalization Gas Spread Valve

1. Suitable for blast furnace (BF) hot blast stove system,
playing an important role in cutting, used as hot blast valve and back draught valve etc.
2. Self-developed new patented technology products
have characteristics of longevity, water conservation and energy efficiency,
which makes it the top-level of water-cooled hot blast valve.
3. Drive Pattern: hydraulic transmission, electric drive etc..
4. All-welded construction, a circulating water cooling system
adopted on all valve bodies and valve discs.
5. Valve sealing achieved by the differential pressure of medium.
6. Fully lined with insulation, thermal insulation material inside all valve bodies,
bonnet and valve discs.
7. Main Material: Q235, 16MnR, 20g, 0Cr18Ni9, heat resistant steel etc..
EMAIL INQUIRY

Qp745 DN250-500mm Hydraulic Equalization Gas Spread Valve

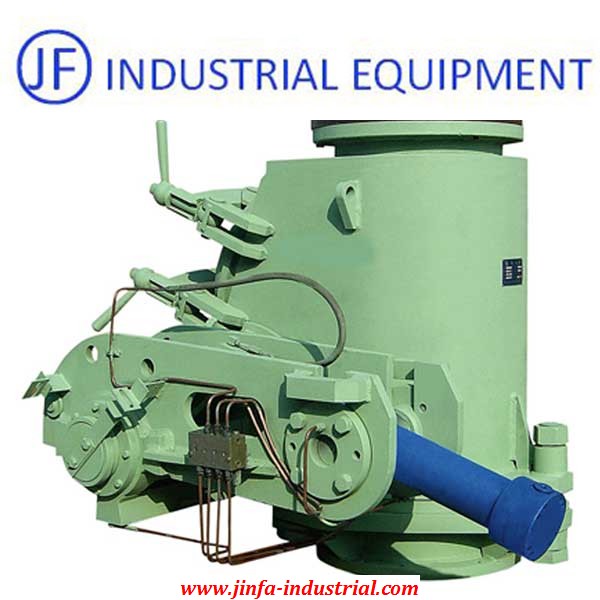

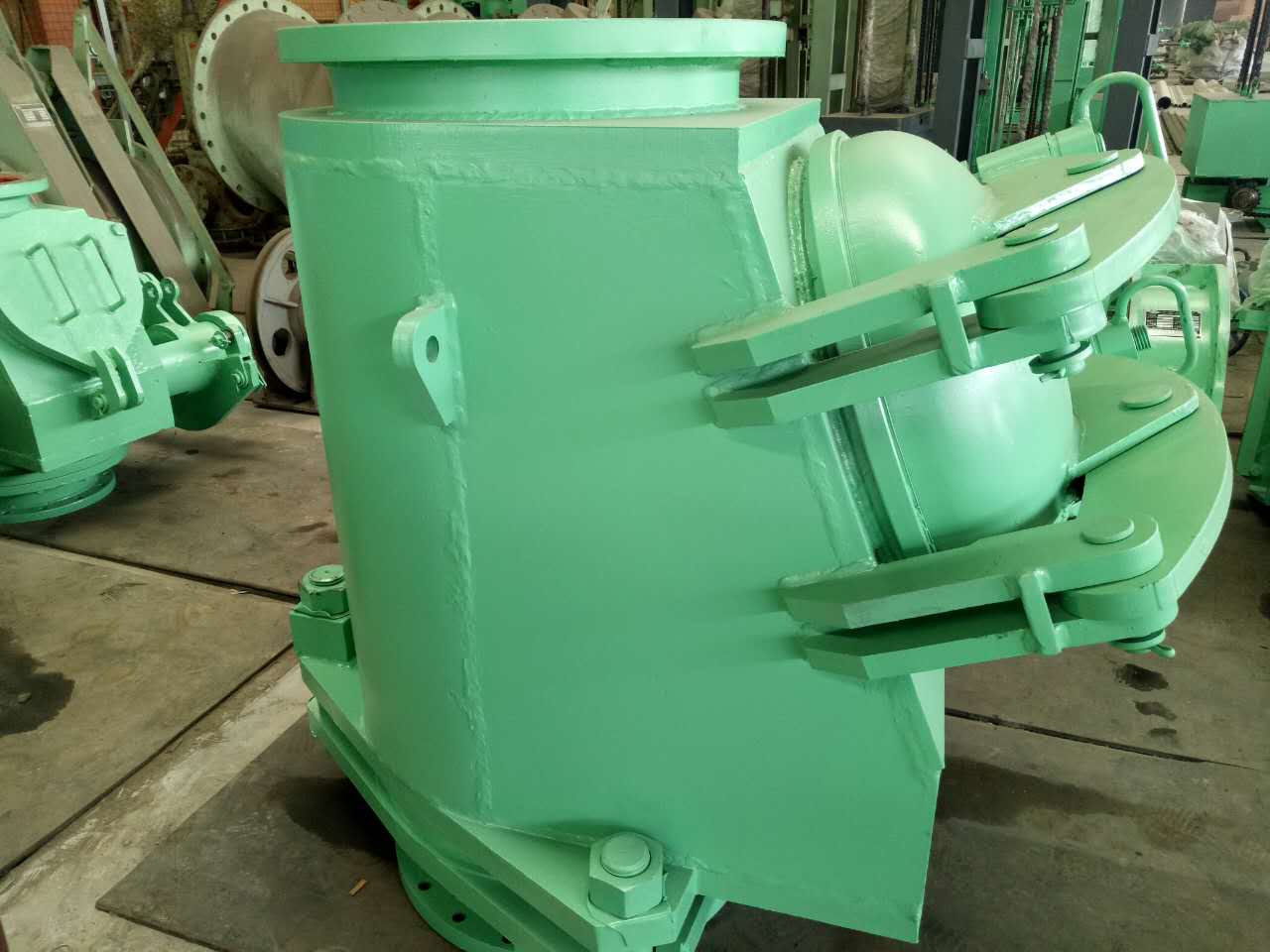

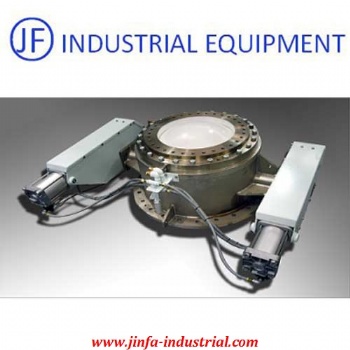

Detail Photos of Gas Spread Valve:

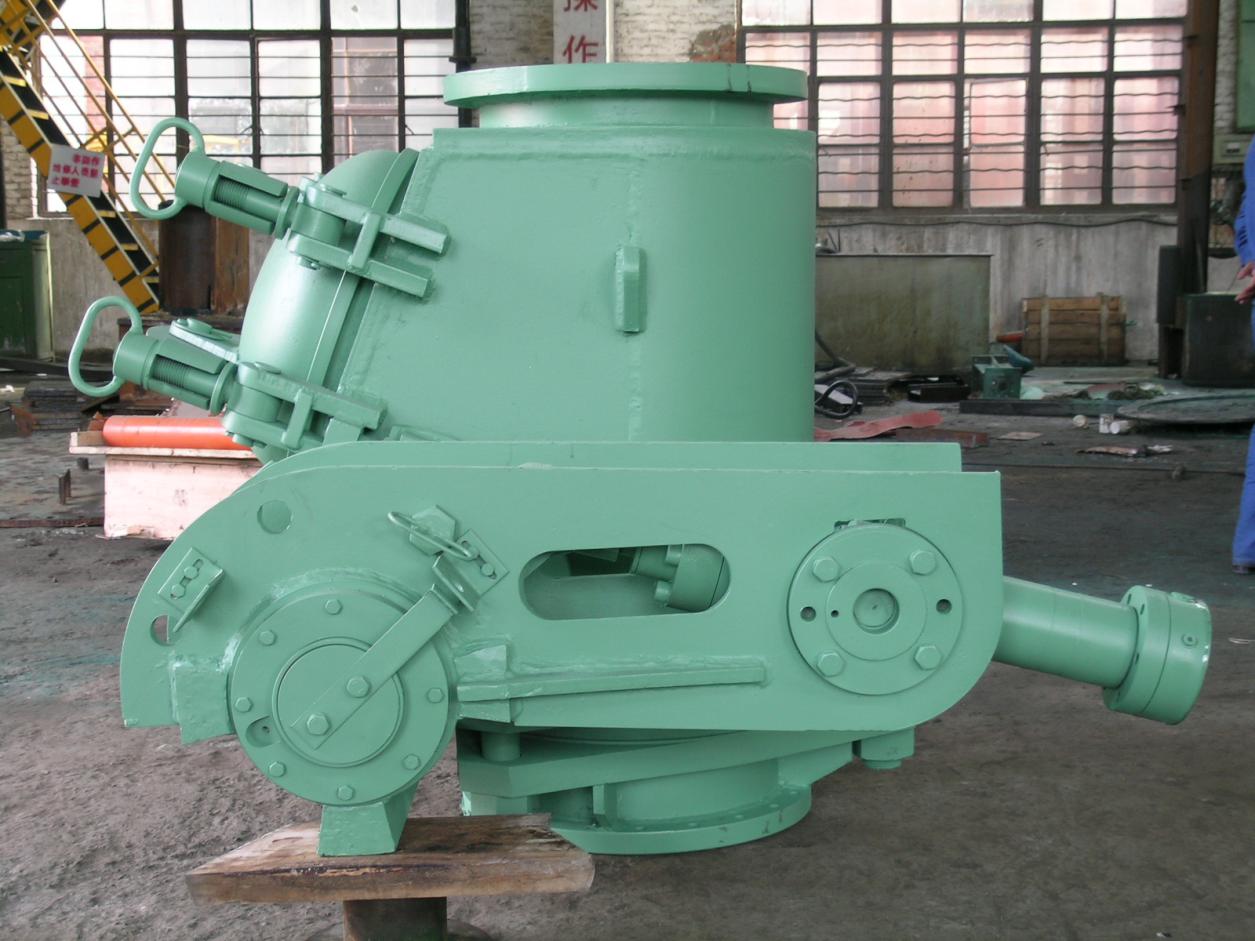

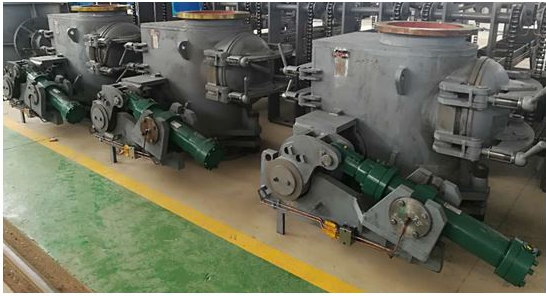

Hydraulic equalizing spread valve.jpg

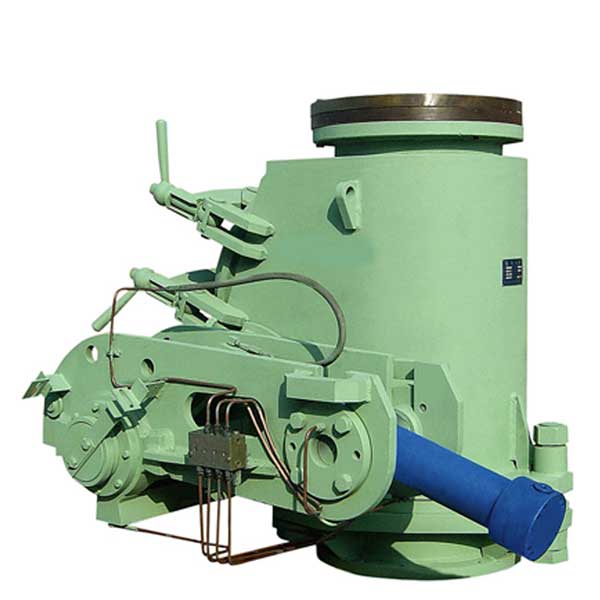

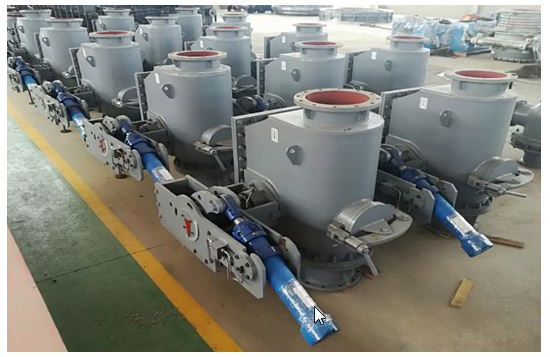

Hydraulic equalizing spread valve1.jpg

QS□44Y X放散阀系列.jpg

QP745Y X Hydraulic equalizing spread valve.jpg

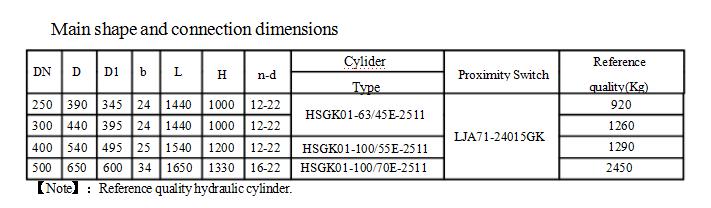

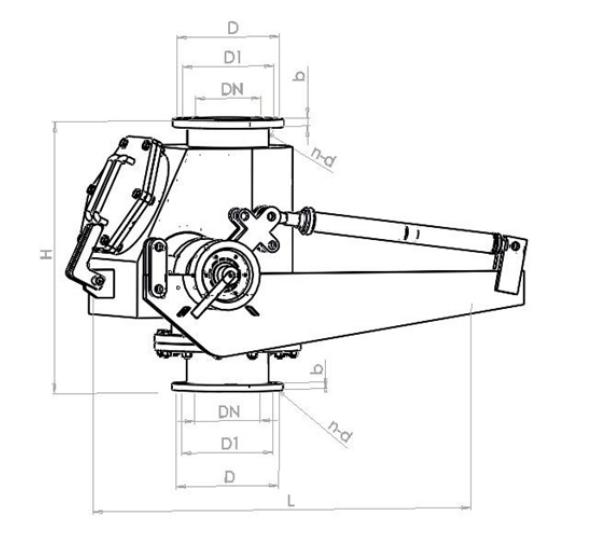

QP745Y X Hydraulic equalizing spread valve Dimension.jpg

QP745Y/X Hydraulic equalizing spread valve

Purposes and Features:

1. Suitable for the BF stove top pressure equalizing system, use as furnace top equalizing relief valve.

2. Soft and hard seals through hard alloy and silicon rubber;,valve plate has a self-centering function, reliable seal.

3. Valve is sealed upon the action of medium pressure and hydraulic cylinder in the process of closing.

4. Valve disc can far from the brushing of the medium when the valve is opened.

5. Main material: quality carbon steel.

Executive Standard:

1. Flange connection dimensions carry out the provisions of GB/T9119-2000.

2. Pressure test refers to the provisions of GB13927-2008.

Note: Use other standards according to customer's requirements, but please mark out while placing orders.

Performance Parameter:

Nominal Diameter(DN)(mm)		DN250~DN500
Nominal Pressure (Mpa)		≤0.3
Test Pressure(MPa)	Case	1.5 times working pressure
	Seal	1.1 times working pressure
	Grade of seal	A
On/off Differential Pressure(MPa)		≤0.03
Working Temperature( ºC)		≤250
Applicable Medium		Half clean coal gas, nitrogen

Valve Model Compilation Instructions:

Valve Model	P	Disc valve
Drive Mode	7/9	7-Hydraulic
Type of Connection	4	Flange connections
Type of Structure	5	Direct-through type equalizing spread valve
Material of Sealing Surface	Y/X	both soft and hard seals through hard alloy and silicon rubber
