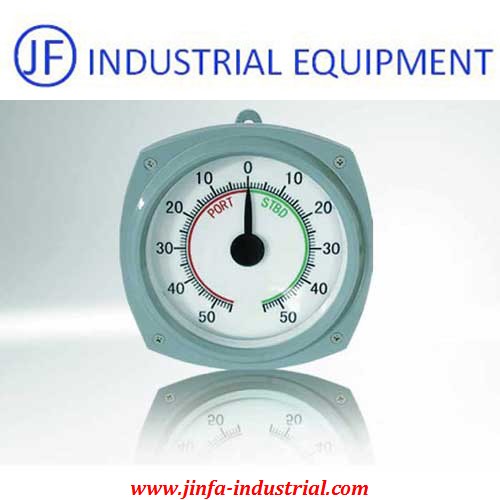

Ship OTN Square Embedded Rudder Position Receiver

Rudder angle indicator is used to indicate the rudder position during ship navigation,
i.e. the rudder angle value It can be divided by forms: digital type rudder angle indicator, pointer type rudder angle indicator.
EMAIL INQUIRY

Ship OTN Square Embedded Rudder Position Receiver



Typical supporting scheme:




Application:

Rudder Angle indicator is used to guide ships the rudder blade rotation direction and the Angle of the instrument.

Specification:

Conform to the standard of CCS, the main performance indicators are as follows:

Power and voltage: AC110V/AC220V, 50/60Hz

Pointer damping for no more than 3 seconds

Rudder Angle range for left 55 ° ~ 0 ~ right 55 ° (or custom);

Indicating accuracy: < 0.5 °

Distance of 1.5 meters of scale can be clearly read, the values of the show

Features:

Beautiful appearance, easy in maintenance

High reliability, accurate instructions

OD1 rudder angle indicator outline drawing:



Parameters:

No	Name	Type	Work Voltage (V)	Visual Diameter	Dimming Mode	IP Rating	Weight (Kg)
1	Rudder angle transmitter	OFT-1 OFT-2	220 110	_	_	Ip56	4.0
2	Square embedded rudder Angle receiver	OQF1B-1	220	φ100	External dimming	IP22	1.2
		OQF1B-2	110
3		OQF1E-1	220	φ100	No lighting	IP22	1.2
		OQF1E-2	110
4		OQF2B-1	220	φ130	External dimming	IP22	1.7
		OQF2B-2	110
5		OQF2E-1	220	φ130	No lighting	IP22	1.7
		OQF2E-2	110
6	Circular wall ac rudder Angle receiver	OQY3B-1	220	φ160	External dimming	IP22	3.5
		OQY3B-2	110
7		OQY4B-1	220	φ200	External dimming	IP22	4.2
		OQY4B-2	110
8		OQY4E-1	220	φ200	No lighting	IP22	4.0
		OQY4E-2	110
9	Square circular wall ac rudder Angle receiver	OTN3A-1	220	φ160	Internal dimming	IP56	3.7
		OTN3A-2	110
10		OTN3E-1	220	φ160	No lighting		3.5
		OTN3E-2	220
11	Square circular wall ac rudder Angle receiver	OTN4A-1	220	φ200	Internal dimming	IP56	4.5
		OTN4A-2	110
12		OTN4B-1	220	φ200	External dimming		4.3
		OTN4B-2	110
13		OTN4E-1	220	φ200	Bo lighting		4.3
		OTN4E-2	110
14	Circular wall ac rudder Angle receiver	OTY4A-1	220	φ200	Internal dimming	IP56	5.0
		OTY4A-2	110
15		OTY4B-1	220	φ200	External dimming		5.0
		OTY4N-2	110
16		OTY4E-1	220	φ200	No lighting		4.7
		OTY4E-2	110
17	Double face rudder angle indicator receiver	ODL5A-1	220	φ250	Internal dimming	IP20	5.0
		ODL5A-2	110
18	Three face top hung receiver	ODS6A-1	220	φ350	Internal dimming	IP20	7.0
		ODS6A-2	110
19		ODS7A-1	220	φ450	Internal dimming		10
		ODS7A-2	110

Drawing of angle rudder indicator:









Angle Rudder Indicator Light Mudlator

Specification:
