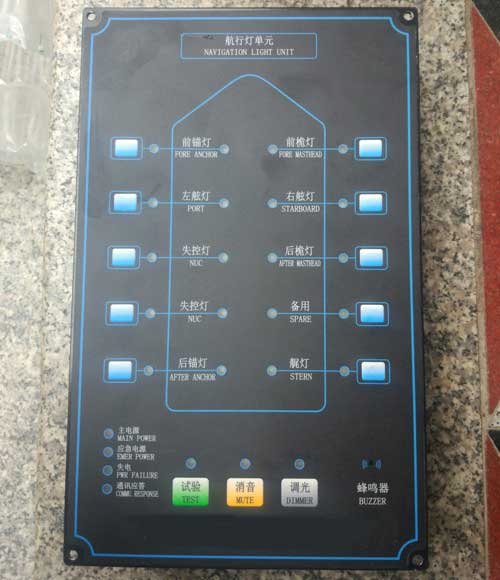

CCS Certificate Marine Navigation Signal Light Control Panel

CCS Certificate Marine Navigation Signal Light Control Panel

Introduction:

Navigation Light Controller and Series Signal Light Controller is developed monitor real-time status of the navigation/signal light,
controlling multichannel single-layer/double-layer navigation/signal lights.

The navigation signal light controller equipment can measure, control and display the on-off status of 20 channels of navigation lights, 16 channels of signal lights, 1 channel of Morse lights and 3 channels of flashing lights.

When the controller device is connected to the lights on the ship, the controller device can check the status of all the signal lights on the current ship with one key, and can control the lights on and off by pressing the keys.

Once a light on the ship goes out or the corresponding line fails At this time, the corresponding LED indicator on the operation panel of the equipment controller will start to flash and the buzzer of the equipment controller will also sound an alarm.

At this time, you can press the mute button to eliminate the sound, the fault light will become flat light and the corresponding circuit Troubleshoot or enable backup lights.

In addition, the device control has user-friendly functions, such as controlling the brightness of the lights, which helps to better monitor the lights in different weather and different times.

Application:

Fishing boat, container vessels, tankers, bulk carriers and dry cargo vessels ,etc.

Our Products Range:

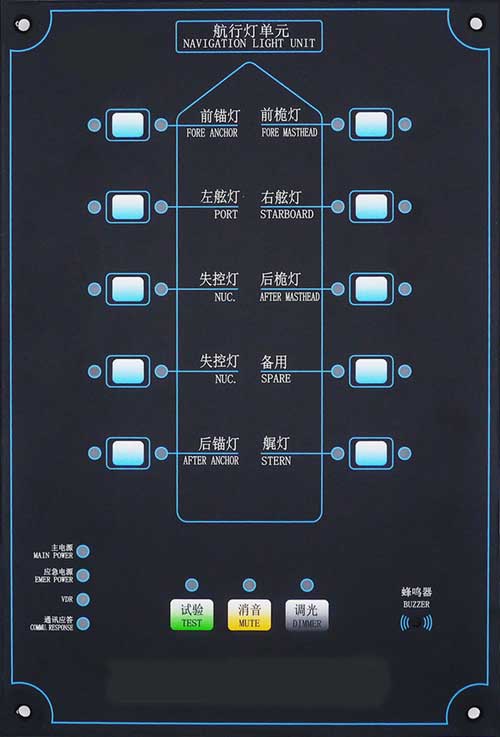

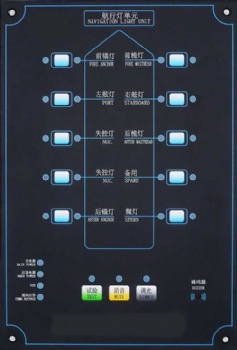

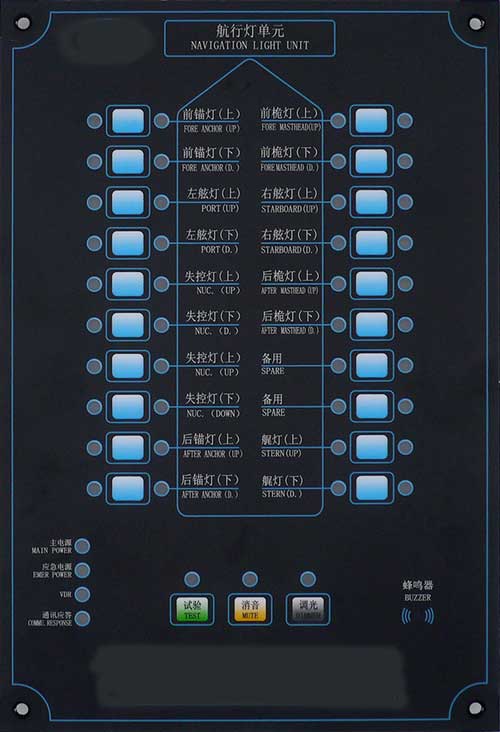

Navigation Light Control Panel

Signal Light Control Panel

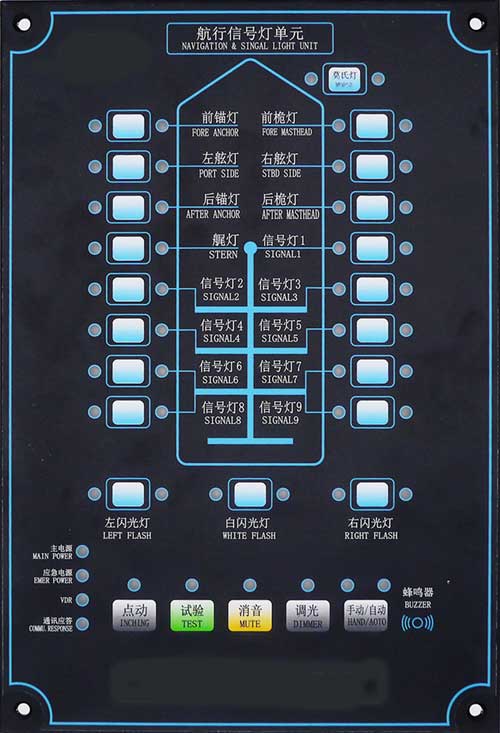

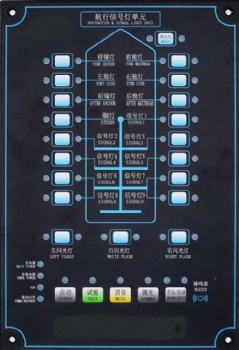

Navigation Signal Light Control Panel

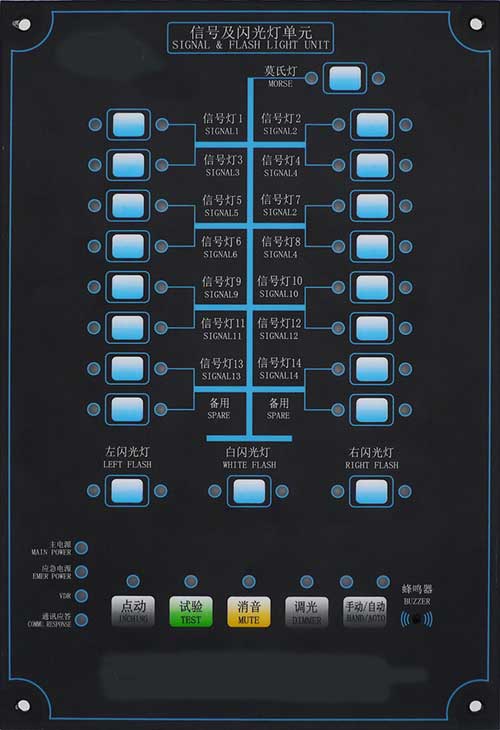

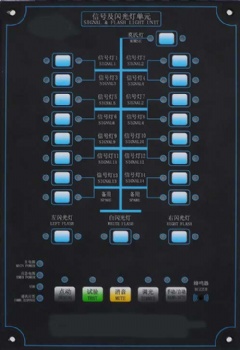

Morse& Flash Signal Light Control Panel

LED Navigation Signal Light Control Panel

Main Features:

1. Failure detection,power failure alarm, test, mute and dimming

2. Dual CAN interface/VDR and AMS interface

3. 25-100W(AC220V), 8-60W(DC24V) Single-channel output 25-100W(AC220V), 8-60W(DC2V)

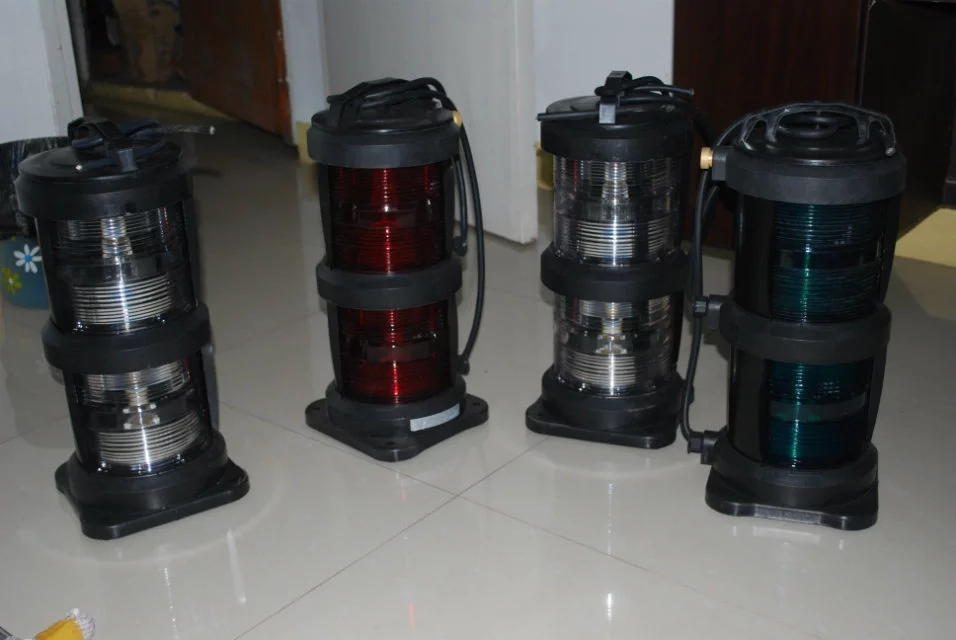

4. Double-layer light interlock,flash light interlock

5. Meet requirement of the MSC253(83)

6. DC24V/10W DC24V/10W power supply

7. Modular design

Package and Shipping:

Note:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 1-3 days for samples; 10-15 days for batch goods.

Payment Terms:

1. Payment: T/T 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 18 month
4. Package Information: Depends on the volume of goods.

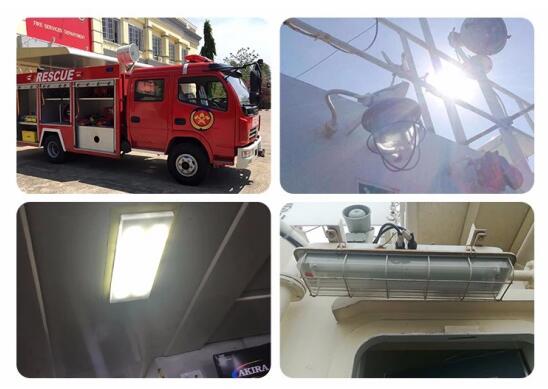

Customer Installation Feedback:
