24V/220V 5nm Visibility Solar Marine LED Tricolor Navigation Signal Light

24V/220V 5nm Visibility Solar Marine LED Tricolor Navigation Signal Light

Introduction:

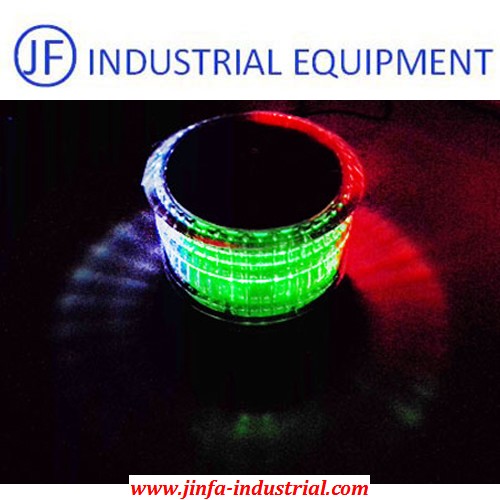

S305/5NM is a multi-purpose vessel navigation light powered by solar energy and designed to comply with the COLREGS(1972) and UL 1104 standards.

The light may become one of the following four lamps.

Masthead Light Deck Light Barge Light Morse Signal Light 225° White Output 360° Down White 112.5° ;135° Morse Code The four functions of light can be combined and selected by an IRC.

Features:


1 Colors: Red , Green ,White

2 It takes only a few minutes to install.

3 Automatically turns on at dusk and off at dawn

4 Will charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.

5 Completely self-contained and watertight.

6 Polycarbonate lens is virtually indestructible.

7 Manufactured to ISO 9001:2008 QAS

Typical Applications:

Fishing Boat

Tug Boat

Tow Boat

Barge

 Dredger

Installation Project Photos:

Package and Shipping:

Note:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 1-3 days for samples; 10-15 days for batch goods.

Specification:


MODEL: S305/5NM

Application: Barge Light

Light Output : 112.5°,135°

Visibility: 5NM

Minimum Autonomy: 140 hrs

Source: Ultra-intensity LED

Peak Intensity White: 120.0cd ; Red: 105.0cd ;Green:112.0cd

Operation:

Latitude: Range 55°S to 55°N

On/Off: Level 60/100 Lux

Lifespan of LEDS: up to 30,000 Hours

Solar panels: Mono-crystalline;Maximum Power 7.2Wp;Efficiency 16%

Battery: Lithium , replaceable;Capacity:16Ah/7.2V

Construction

Lens Lens Material:Polycarbonate

Mounting Option: 4 bolts or Magnetic base

Weight: 3.4kg

Environment Temperature Range: -40ºC to +80ºC;

Waterproof: IP67

Installation Dimension and position:

Payment Terms:

1. Payment: T/T 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 18 month
4. Package Information: Depends on the volume of goods.
