IP67 2nm Visibility Ship Solar Port Signal Light
Introduction:
S305/2NM is a multi-purpose vessel navigation light powered by solar energy and designed to comply with the COLREGS(1972) and UL 1104 standards.
The light may become one of the following four lamps.
Masthead Light Deck Light Barge Light Morse Signal Light 225° White Output 360° Down White 112.5° ;135° Morse Code The four functions of light can be combined and selected by an IRC.
Features:
1 Colors: Red , Green ,White
2 It takes only a few minutes to install.
3 Automatically turns on at dusk and off at dawn
4 Will charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.
5 Completely self-contained and watertight.
6 Polycarbonate lens is virtually indestructible.
7 Manufactured to ISO 9001:2008 QAS
Typical Applications:
Fishing Boat
Tug Boat
Tow Boat
Barge
Dredger

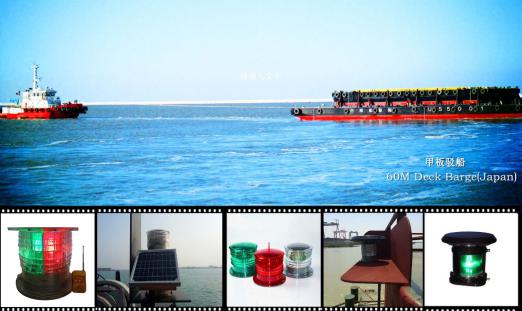

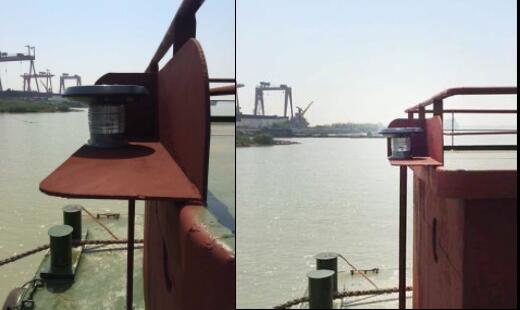

Installation Project Photos:
Package and Shipping:
Note:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-3 days for samples; 10-15 days for batch goods.
Specification:
SPECIFICATIONS | ||||
Light Output | STEADY ON | |||
Effective Intensity | White | 20.0cd | ||
Red | 16.0cd | |||
Amber | 16.0cd | |||
Green | 18.0cd | |||
Visibility | 2 NM | |||
Horizontal Output | 112.5°,135° | |||
LED | 4Pcs | |||
Operation | ||||
Minimum Autonomy | 100hrs | |||
Latitude Range | 55°S to 55°N | |||
On/Off Level | 60/100 Lux | |||
Lifespan of LEDS | up to 100,000 Hours | |||
Solar panels | mono-crystalline;Maximum Power 1.5w;Efficiency 16% | |||
Battery | Ni-MH , replaceable;4.8Ah | |||
Construction | ||||
Lens Material | Polycarbonate | |||
Colored Lens Option | red,green,amber,white | |||
Mounting Option | 4 bolts or Magnetic base | |||
Weight | 0.9kg | |||
Environment | ||||
Temperature Range | -40ºC to +80ºC | |||
Waterproof | IP67 |

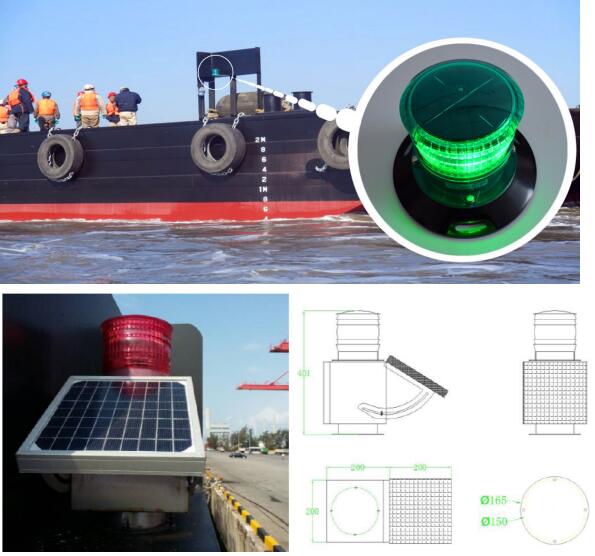

Installation Dimension and position:
Payment Terms:
1. Payment: T/T 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 18 month
4. Package Information: Depends on the volume of goods.
